Detach/mount start-up clutch on driven plate - AR27.51-P-0400-01W
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
START UP CLUTCH
| Number | Designation | Transmission 722.93 | ||
|---|---|---|---|---|
| BA27.51-P-1001-01A | Bolt, start-up clutch to driven plate | Stage 1 | Nm | 4 |
| Stage 2 | Nm | 30 | ||
| Stage 3 | ∠° | 90 | ||
Detaching
Do not use an impact wrench or compressed-air tools to unscrew and screw in the bolts, otherwise the threaded unions in the driven plate will be damaged.

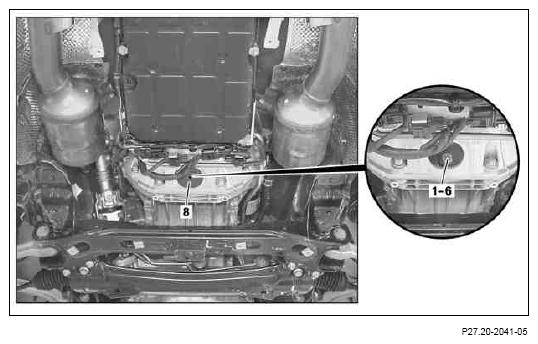

- Remove cover (8).
- Remove bolts (1 to 6) from start-up clutch.
Counterhold the engine at the center bolt of the crankshaft using the
socket wrench bit and continue turning in the direction of engine rotation.
Checking
Check the driven plate (7) for damage.
Attaching

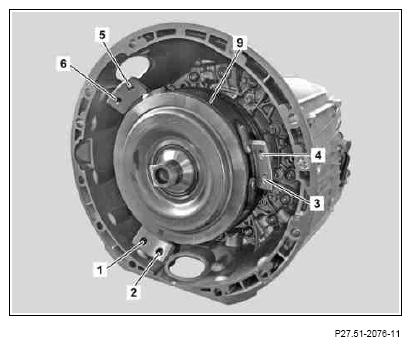

- Replace bolts (1 to 6) and attach start-up clutch (9) to driven plate (7).
Observe the tightening sequence and tightening torque, otherwise the start-up clutch (9) and driven plate (7) will be damaged.
TIGHTENING SEQUENCE
| Tightening sequence | Screw | Stage |
|---|---|---|
| 1 | Press start-up clutch (9) against driven plate (7) using long |
|
| 2 | Attach the bolts (1 to 6) and position by hand | |
| 3 | Tighten bolts (1, 2) and, while tightening, press start-up clutch (9) against driven plate (7) using |
Stage 1 |
| 4 | Tighten bolts (3 to 6) | Stage 1 |
| 5 | Tighten bolts (1 to 6) | Stage 2 |
| 6 | Tighten bolts (1 to 6) | Stage 3 |
