Electrical function schematic for exhaust treatment - PE14.00-P-2051-97DAS

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 642.8 in MODEL 212 as of model year 2014 without CODE U42 (BlueTEC diesel exhaust treatment (SCR))

Code: Designation: Position:
1 Engine diagnosis indicator lamp, actuation 18J
1 Engine diagnosis indicator lamp, actuation 18F
1 Engine diagnosis indicator lamp, actuation 20J
10 Temperature sensor upstream of turbocharger, signal 10D
11 Temperature sensor upstream of diesel particulate filter, signal 13G
12 Differential pressure sensor (DPF), signal 11H
13 Accelerator pedal sensor, signal 9G
14 Engine speed, signal 9G
15 Circuit 87, status 9E
2 Glow, request 4F
3 Glow plugs, actuation 3J
4 Shift point, increase request 14C
5 Outside temperature, signal 13F
6 Oil temperature sensor, signal 9E
7 Fuel injectors, actuation 7C
8 Intake port shutoff actuator motor, actuation 9B
9 Oxygen sensor element, signal 11D
A1 Instrument cluster 20J
A1e58 Engine diagnosis indicator lamp 18H
A1p13 Multifunction display 21J
B1 Oil temperature sensor 5D
B19/11 Temperature sensor upstream of turbocharger 10C
B19/9 Temperature sensor upstream of diesel particulate filter 14H
B28/8 Differential pressure sensor (DPF) 11J
B37 Accelerator pedal sensor 7J
B70 Crankshaft Hall sensor 5H
CAN C Drive train CAN 13D
CAN E1 Chassis CAN 1 16F
CAN E2 Chassis CAN 2 19H
G3/2b1 Sensor element of oxygen sensor upstream of catalytic converter 11A
LIN C1 Drive train LIN 6F
M55 Intake port shutoff actuator motor 8A
N10/1 Front SAM control unit with fuse and relay module 2C
N10/1 Front SAM control unit with fuse and relay module 19E
N10/1kN Engine circuit 87 relay 4C
N14/3 Glow output stage 2F
N3/9 CDI control unit 11E
R9/1 Cylinder 1 glow plug 1J
R9/2 Cylinder 2 glow plug 1J
R9/3 Cylinder 3 glow plug 1K
R9/4 Cylinder 4 glow plug 1K
R9/5 Cylinder 5 glow plug 1K
R9/6 Cylinder 6 glow plug 1K
Y3/8 Fully integrated transmission control unit 14A
Y76/1 Cylinder 1 fuel injector 6A
Y76/2 Cylinder 2 fuel injector 6B
Y76/3 Cylinder 3 fuel injector 6B
Y76/4 Cylinder 4 fuel injector 6B
Y76/5 Cylinder 5 fuel injector 6B
Y76/6 Cylinder 6 fuel injector 6C

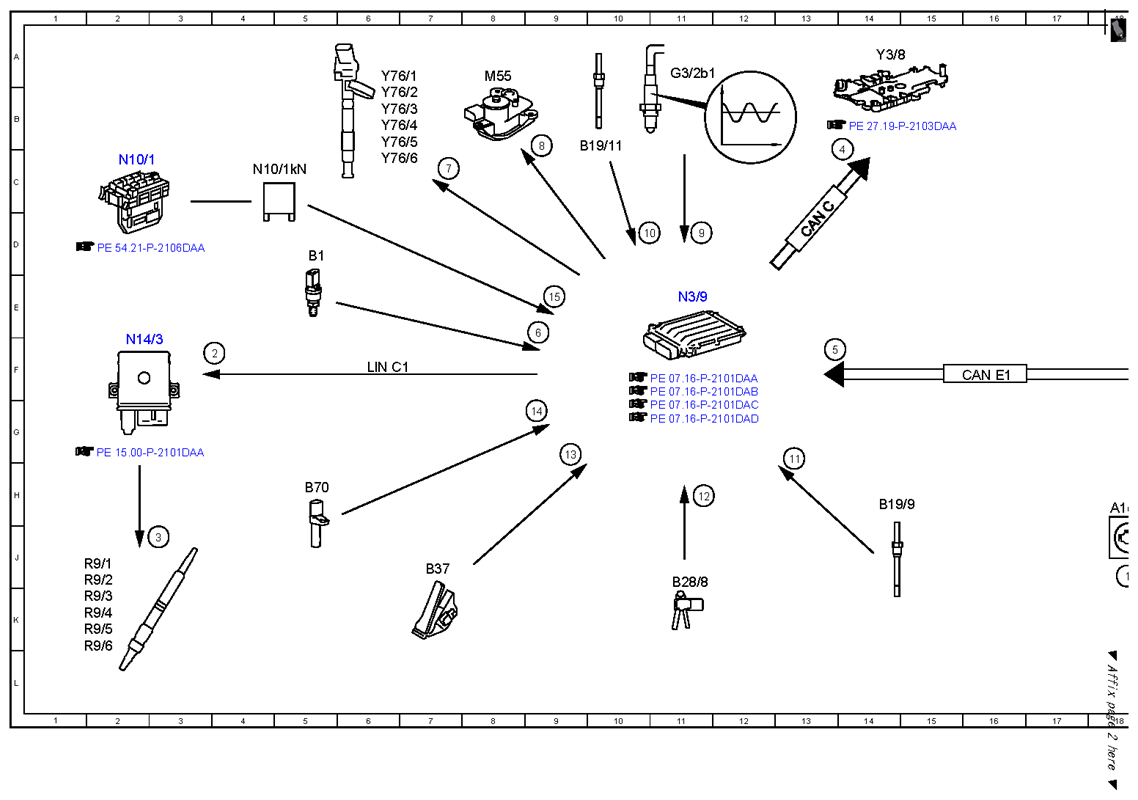

Fig 1: Exhaust Treatment Function Diagram (1 Of 2)
G10054481Courtesy of MERCEDES-BENZ USA

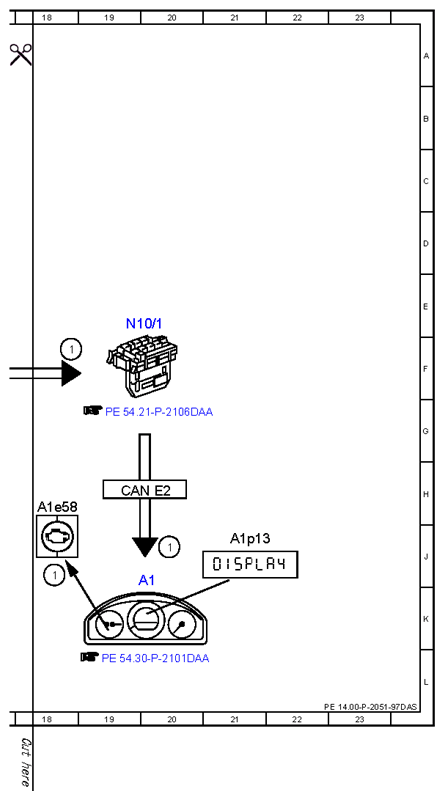

Fig 2: Exhaust Treatment Function Diagram (2 Of 2)
G10054482Courtesy of MERCEDES-BENZ USA
