Electrical function schematic for exhaust treatment - PE14.00-P-2051-97DAR

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 651 as of 3/1/13 in model 212 (except 212.098/298)

Code: Designation: Position:
1 Engine diagnosis indicator lamp, actuation 17C
1 Engine diagnosis indicator lamp, actuation 17C
10 Fuel injectors, actuation 3E
11 Engine speed, signal 7D
12 Oxygen sensor, signal 8D
13 Temperature sensor upstream of turbocharger, signal 9G
14 Intake port shutoff actuator motor, actuation 10C
15 Circuit 87, status 9D
16 NOx sensor, signal 9F
16 NOx sensor, signal 31C
16 NOx sensor, signal 33C
17 NOx sensor heater, actuation 10F
17 NOx sensor heater, actuation 29C
17 NOx sensor heater, actuation 32C
17 NOx sensor heater, actuation 31D
17 NOx sensor heater, actuation 33D
18 AdBlue® injection, request 10F
18 AdBlue® injection, request 22D
19 AdBlue® metering valve, actuation 23D
2 Glow, request 3F
20 Outside temperature, signal 9E
21 Temperature sensor upstream of catalytic converter, signal 6E
22 Temperature sensor upstream of SCR catalytic converter, signal 6D
23 Soot particulate content, message 17J
23 Soot particulate content, message 9G
24 AdBlue® tank temperature sensor, signal 25D
25 Fill level sensor (full), signal 25A
26 Fill level sensor (reserve), signal 25B
27 Fill level sensor (empty), signal 25C
28 AdBlue® pressure sensor, signal 25D
29 AdBlue® fill level sensor, signal 25E
3 Glow plugs, actuation 2J
4 Shift point, increase request 13H
6 Temperature sensor upstream of diesel particulate filter, signal 8H
7 Differential pressure sensor (DPF), signal 7H
8 Accelerator pedal sensor, signal 6H
9 Oil temperature sensor, signal 5G
A1 Instrument cluster 18C
A103/1b1 AdBlue® tank temperature sensor 25E
A103/1b2 Fill level sensor (full) 25B
A103/1b3 Fill level sensor (reserve) 25B
A103/1b4 Fill level sensor (empty) 25C
A103/1b5 AdBlue® fill level sensor 25E
A103/2 AdBlue® delivery module 27D
A103/2 AdBlue® delivery module 27B
A103/2b1 AdBlue® pressure sensor 26D
A1e58 Engine diagnosis indicator lamp 17A
A1p13 Multifunction display 19B
B1 Oil temperature sensor 4J
B16/15 Temperature sensor upstream of SCR catalytic converter 4A
B19/11 Temperature sensor upstream of turbocharger 9K
B19/7 Temperature sensor upstream of catalytic converter 3A
B19/9 Temperature sensor upstream of diesel particulate filter 8K
B28/8 Differential pressure sensor (DPF) 6K
B37 Accelerator pedal sensor 5J B70 Crankshaft Hall sensor 5A
CAN C Drive train CAN 11G
CAN E1 Chassis CAN 1 11E
CAN E2 Chassis CAN 2 15D
CAN I Drive train sensor CAN 11F
CAN I Drive train sensor CAN 11G
Code 421 9-speed automatic transmission 13J
Code 427 7-speed automatic transmission 10J
Code 474 Diesel particulate filter 6K
Code 494 USA version 16G
Code 494 USA version 6G
Code 494 USA version 22C
G3/2b1 Sensor element of oxygen sensor upstream of catalytic converter 7A
LIN C1 Drive train LIN 4F
M55 Intake port shutoff actuator motor 10C
N10/1 Front SAM control unit with fuse and relay module 13C
N10/1kN Engine circuit 87 relay 11D
N118/5 AdBlue® control unit 23B
N14/3 Glow output stage 2F
N3/9 CDI control unit 7E
N37/7 Nitrogen oxides control unit downstream of diesel particulate filter 30C
N37/7b1 NOx sensor downstream of diesel particulate filter 30E
N37/8 Nitrogen oxides control unit downstream of SCR catalytic converter 32C
N37/8b1 NOx sensor downstream of SCR catalytic converter 33E
N74 Soot particulate sensor control unit 17J
N74b1 Soot particulate sensor 17L
R9/1 Cylinder 1 glow plug 1J
R9/2 Cylinder 2 glow plug 1J
R9/3 Cylinder 3 glow plug 1K
R9/4 Cylinder 4 glow plug 1K
U244 Valid for BlueTEC 21A
U244 Valid for BlueTEC 2A
U244 Valid for BlueTEC 16G
Y129 AdBlue® metering valve 23E
Y3/8n4 Fully integrated transmission control control unit 14K
Y3/8n4 Fully integrated transmission control control unit 11K
Y76/1 Cylinder 1 fuel injector 2D
Y76/2 Cylinder 2 fuel injector 2D
Y76/3 Cylinder 3 fuel injector 2D
Y76/4 Cylinder 4 fuel injector 2D

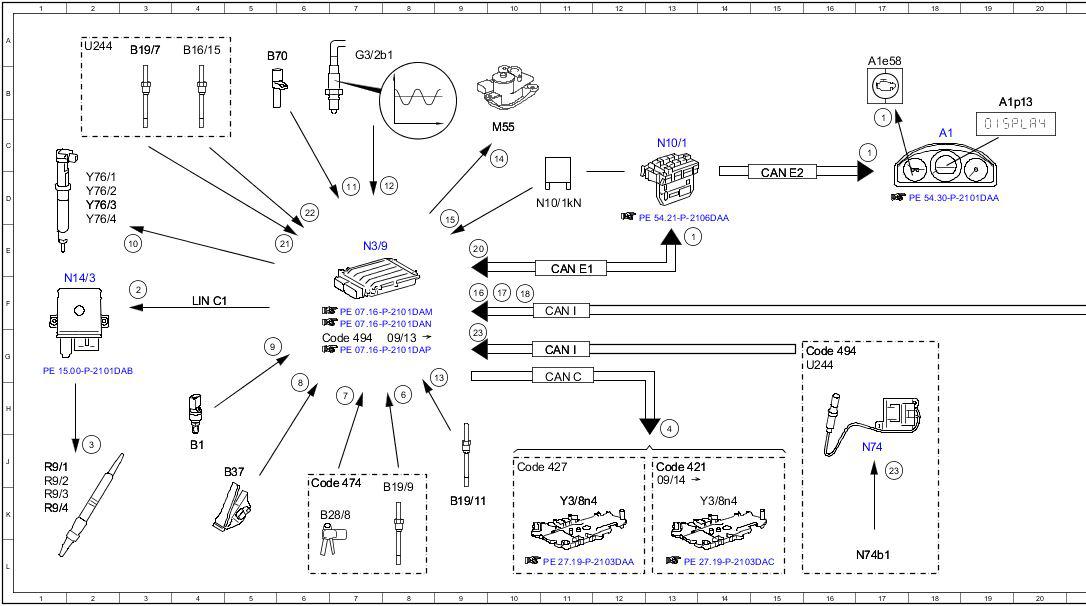

Fig 1: Exhaust Treatment Electrical Function Schematic (1 Of 2)
G00565270Courtesy of MERCEDES-BENZ USA

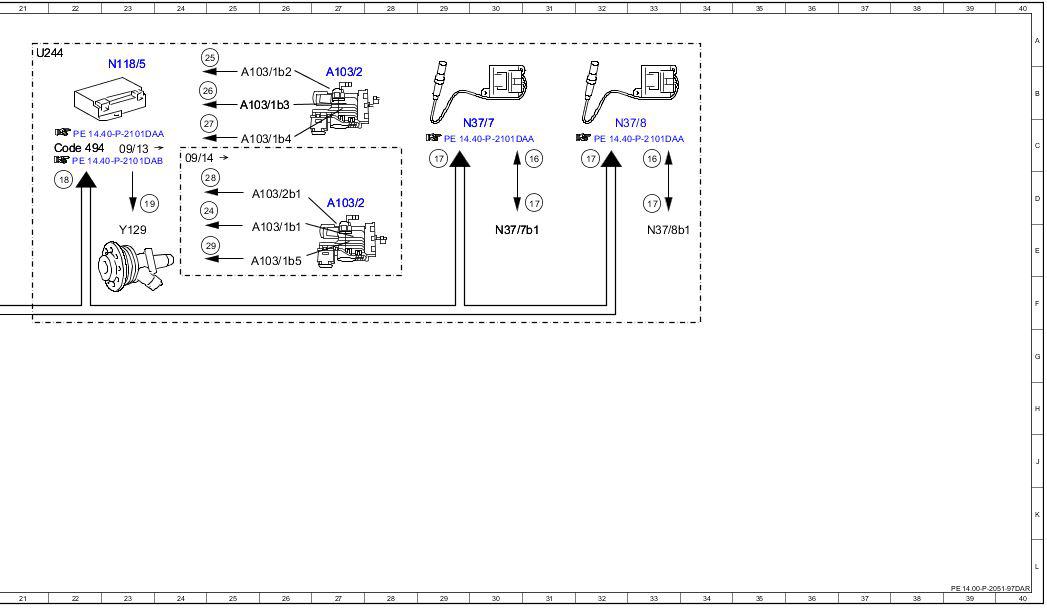

Fig 2: Exhaust Treatment Electrical Function Schematic (2 Of 2)
G00565271Courtesy of MERCEDES-BENZ USA
