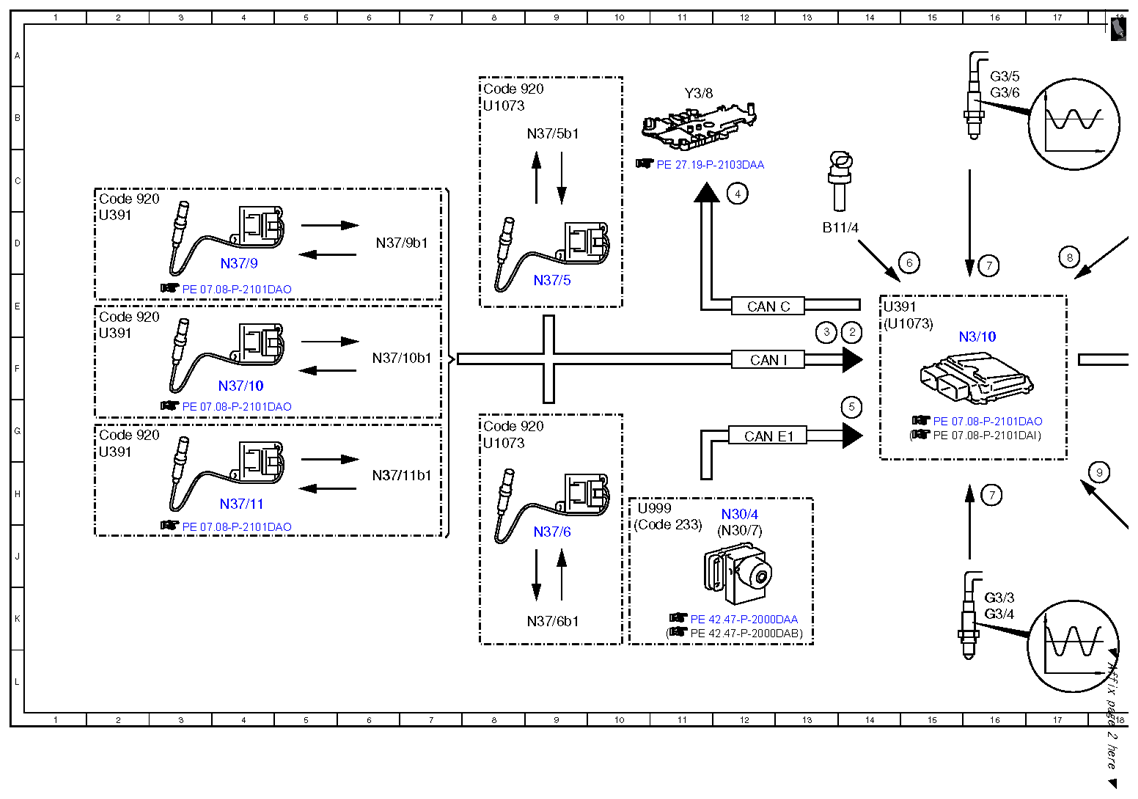

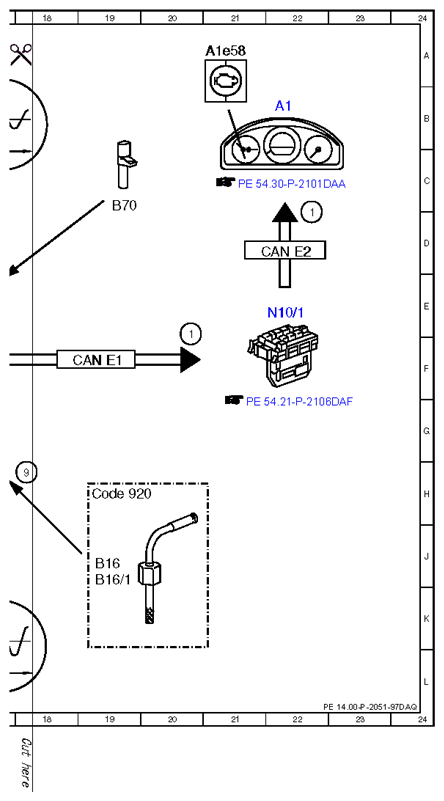

Electrical function schematic for exhaust treatment - PE14.00-P-2051-97DAQ
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 276.8/9 in MODEL 212 (except 212.095) as of model year 2014
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Engine diagnosis indicator lamp, actuation | 20F |
| 1 | Engine diagnosis indicator lamp, actuation | 22D |
| 2 | Nitrogen oxide proportion, status | 14E |
| 3 | Oxygen proportion, status | 13E |
| 4 | Shift point, increase request | 12C |
| 5 | Wheel speed, signal | 14G |
| 6 | Coolant temperature sensor, signal | 15D |
| 7 | Oxygen sensor, signal | 16H |
| 7 | Oxygen sensor, signal | 16D |
| 8 | Engine speed, signal | 17D |
| 9 | Exhaust temperature, signal | 18H |
| A1 | Instrument cluster | 22B |
| A1e58 | Engine diagnosis indicator lamp | 21A |
| B11/4 | Coolant temperature sensor | 13D |
| B16 | Temperature sensor upstream of NOx storage catalytic converter, right | 19J |
| B16/1 | Temperature sensor upstream of NOx storage catalytic converter, left | 19J |
| B70 | Crankshaft Hall sensor | 19C |
| CAN C | Drive train CAN | 12E |
| CAN E1 | Chassis CAN 1 | 12G |
| CAN E1 | Chassis CAN 1 | 19F |
| CAN E2 | Chassis CAN 2 | 22D |
| CAN I | Drive train sensor CAN | 12F |
| Code 233 | DISTRONIC PLUS | 10J |
| Code 920 | Gasoline direct injection with stratified charge | 19H |
| Code 920 | Gasoline direct injection with stratified charge | 8B |
| Code 920 | Gasoline direct injection with stratified charge | 8G |
| Code 920 | Gasoline direct injection with stratified charge | 2G |
| Code 920 | Gasoline direct injection with stratified charge | 2E |
| Code 920 | Gasoline direct injection with stratified charge | 2C |
| G3/3 | Left oxygen sensor upstream of catalytic converter | 16K |
| G3/4 | Right oxygen sensor upstream of catalytic converter | 16K |
| G3/5 | Left oxygen sensor downstream of catalytic converter | 16A |
| G3/6 | Right oxygen sensor downstream of catalytic converter | 16B |
| N10/1 | Front SAM control unit with fuse and relay module | 22E |
| N3/10 | ME-SFI [ME] control unit | 16F |
| N30/4 | Electronic Stability Program control unit | 12H |
| N30/7 | Premium Electronic Stability Program control unit | 12J |
| N37/10 | Control unit of right NOx sensor upstream of NOx storage catalytic converter | 4F |
| N37/10b1 | Right NOx sensor upstream of NOx storage catalytic converter | 6F |
| N37/11 | Control unit of NOx sensor downstream of NOx storage catalytic converter | 4H |
| N37/11b1 | NOx sensor downstream of NOx storage catalytic converter | 6H |
| N37/5 | Left NOx sensor control unit | 9E |
| N37/5b1 | Left NOx sensor | 9B |
| N37/6 | Right NOx sensor control unit | 9J |
| N37/6b1 | Right NOx sensor | 9K |
| N37/9 | Control unit of left NOx sensor upstream of NOx storage catalytic converter | 4D |
| N37/9b1 | Left NOx sensor upstream of NOx storage catalytic converter | 6D |
| U1073 | Valid for gasoline engine 276.9 | 8B |
| U1073 | Valid for gasoline engine 276.9 | 8G |
| U1073 | Valid for gasoline engine 276.9 | 14E |
| U391 | Valid for gasoline engine 276.8 | 2G |
| U391 | Valid for gasoline engine 276.8 | 2F |
| U391 | Valid for gasoline engine 276.8 | 2D |
| U391 | Valid for gasoline engine 276.8 | 14E |
| U999 | Not valid with DISTRONIC PLUS | 10H |
| Y3/8 | Fully integrated transmission control unit | 11B |
