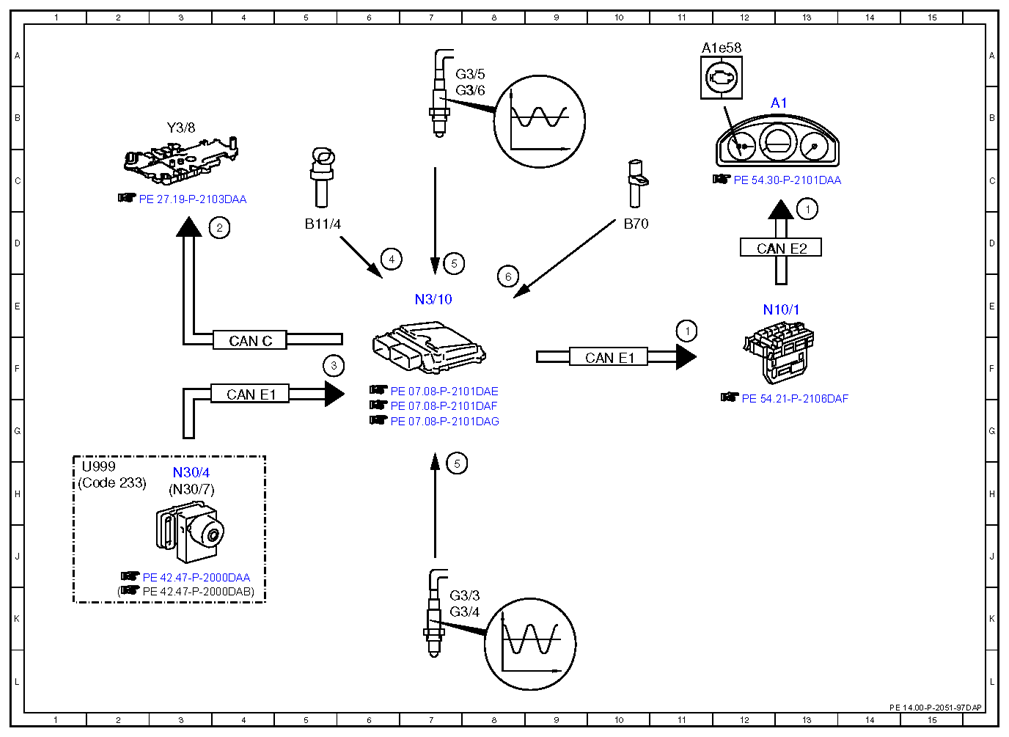

Electrical function schematic for exhaust treatment - PE14.00-P-2051-97DAP
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 157.9, 278.9 in MODEL 212 as of model year 2014
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Engine diagnosis indicator lamp, actuation | 11E |
| 1 | Engine diagnosis indicator lamp, actuation | 13D |
| 2 | Shift point, increase request | 4D |
| 3 | Wheel speed, signal | 5F |
| 4 | Coolant temperature sensor, signal | 6D |
| 5 | Oxygen sensor, signal | 7H |
| 5 | Oxygen sensor, signal | 7D |
| 6 | Engine speed, signal | 8E |
| A1 | Instrument cluster | 12B |
| A1e58 | Engine diagnosis indicator lamp | 12A |
| B11/4 | Coolant temperature sensor | 5D |
| B70 | Crankshaft Hall sensor | 10D |
| CAN C | Drive train CAN | 4F |
| CAN E1 | Chassis CAN 1 | 4G |
| CAN E1 | Chassis CAN 1 | 10F |
| CAN E2 | Chassis CAN 2 | 12D |
| Code 233 | DISTRONIC PLUS | 1H |
| G3/3 | Left oxygen sensor upstream of catalytic converter | 7K |
| G3/4 | Right oxygen sensor upstream of catalytic converter | 7K |
| G3/5 | Left oxygen sensor downstream of catalytic converter | 7A |
| G3/6 | Right oxygen sensor downstream of catalytic converter | 7B |
| N10/1 | Front SAM control unit with fuse and relay module | 12E |
| N3/10 | ME-SFI [ME] control unit | 7E |
| N30/4 | Electronic Stability Program control unit | 3H |
| N30/7 | Premium Electronic Stability Program control unit | 3H |
| U999 | Not valid with DISTRONIC PLUS | 1H |
| Y3/8 | Fully integrated transmission control unit | 3B |
