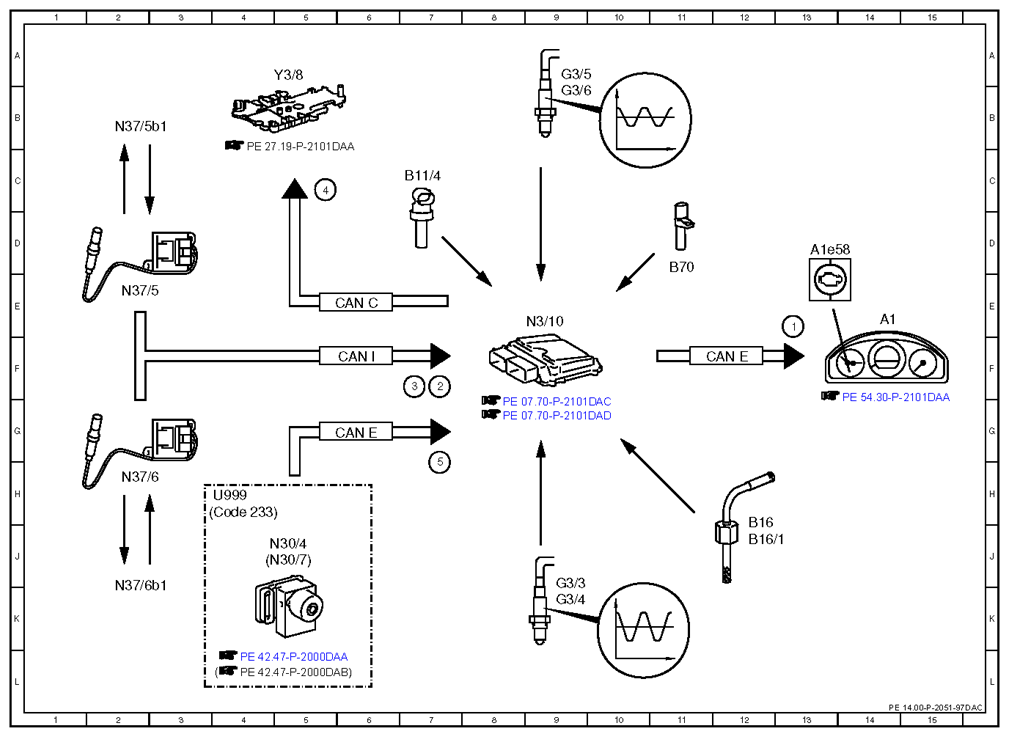

Electrical function schematic for exhaust treatment - PE14.00-P-2051-97DAC
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 272.98 in MODEL 212
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Engine diagnosis indicator lamp, actuation | 13E |
| 2 | Nitrogen oxide proportion, status | 7F |
| 3 | Oxygen proportion, status | 6F |
| 4 | Shift point, increase request | 5C |
| 5 | Vehicle speed, signal | 7G |
| A1 | Instrument cluster | 14E |
| A1e58 | Engine diagnosis indicator lamp | 13D |
| B11/4 | Coolant temperature sensor | 7C |
| B16 | Temperature sensor upstream of NOx storage catalytic converter, right | 12J |
| B16/1 | Temperature sensor upstream of NOx storage catalytic converter, left | 12J |
| B70 | Crankshaft Hall sensor | 11D |
| CAN C | Drive train CAN | 6E |
| CAN E | Chassis CAN | 6G |
| CAN E | Chassis CAN | 12F |
| CAN I | Drive train sensor CAN | 6F |
| Code 233 | DISTRONIC PLUS | 4H |
| G3/3 | Left oxygen sensor upstream of catalytic converter | 9K |
| G3/4 | Right oxygen sensor upstream of catalytic converter | 9K |
| G3/5 | Left oxygen sensor downstream of catalytic converter | 9A |
| G3/6 | Right oxygen sensor downstream of catalytic converter | 9B |
| N3/10 | ME-SFI [ME] control unit | 9E |
| N30/4 | Electronic Stability Program control unit | 5J |
| N30/7 | Premium Electronic Stability Program control unit | 5J |
| N37/5 | Left nitrogen oxides control unit | 2E |
| N37/5b1 | Left NOx sensor | 2B |
| N37/6 | Right nitrogen oxides control unit | 2H |
| N37/6b1 | Right NOx sensor | 2K |
| U999 | Not valid with DISTRONIC PLUS | 4H |
| Y3/8 | Fully integrated transmission control unit | 5A |
