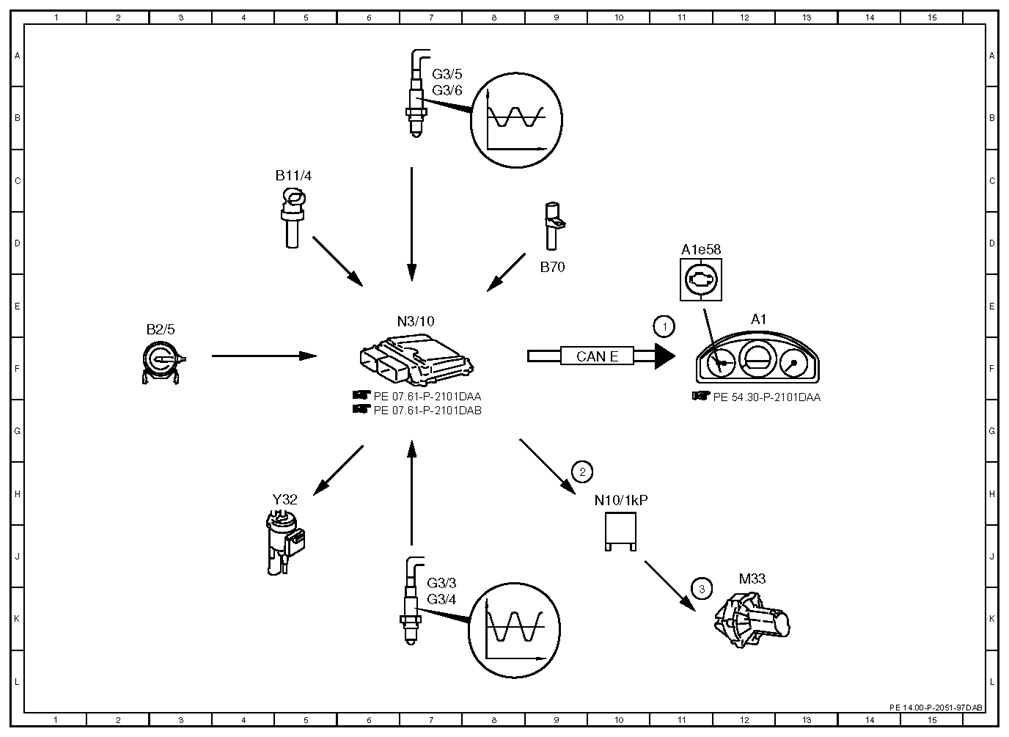

Electrical function schematic for exhaust treatment - PE14.00-P-2051-97DAB
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 272, 273 in MODEL 212 except ENGINE 272.98
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Engine diagnosis indicator lamp, actuation | 11E |
| 2 | Secondary air injection relay, actuation | 9H |
| 3 | Electric air pump, actuation | 11K |
| A1 | Instrument cluster | 12E |
| A1e58 | Engine diagnosis indicator lamp | 11D |
| B11/4 | Coolant temperature sensor | 5C |
| B2/5 | Hot film mass air flow sensor | 3E |
| B70 | Crankshaft Hall sensor | 9D |
| CAN E | Chassis CAN | |
| G3/3 | Left oxygen sensor upstream of catalytic converter | 7K |
| G3/4 | Right oxygen sensor upstream of catalytic converter | 7K |
| G3/5 | Left oxygen sensor downstream of catalytic converter | 7A |
| G3/6 | Right oxygen sensor downstream of catalytic converter | 7B |
| M33 | Electric air pump | 12J |
| N10/1kP | Secondary air injection relay | 10H |
| N3/10 | ME-SFI [ME] control unit | 7E |
| Y32 | Air pump switchover valve | 5H |
