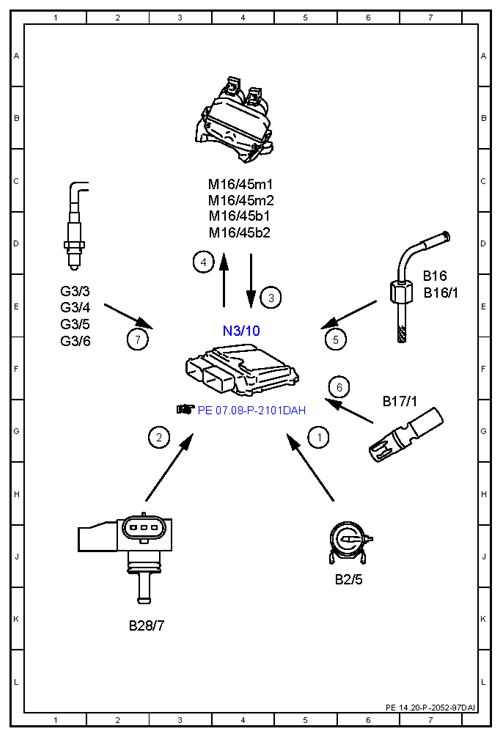

Electrical function schematic for exhaust gas recirculation - PE14.20-P-2052-97DAI
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINES 276 in MODEL 212
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Engine load, signal | 5G |
| 2 | Intake manifold pressure, signal | 3G |
| 3 | Hall sensors, signal | 4E |
| 4 | Actuator motors, actuation | 3D |
| 5 | Exhaust temperature, signal | 5F |
| 6 | Intake manifold intake air temperature sensor, signal | 6F |
| 7 | Oxygen sensor, signal | 2F |
| B16 | Temperature sensor upstream of NOx storage catalytic converter, right | 7E |
| B16/1 | Temperature sensor upstream of NOx storage catalytic converter, left | 7E |
| B17/1 | Intake manifold intake air temperature sensor | 6G |
| B2/5 | Hot film mass air flow sensor | 6J |
| B28/7 | Pressure sensor downstream of throttle valve | 2K |
| G3/3 | Left oxygen sensor upstream of catalytic converter | 1E |
| G3/4 | Right oxygen sensor upstream of catalytic converter | 1E |
| G3/5 | Left oxygen sensor downstream of catalytic converter | 1E |
| G3/6 | Right oxygen sensor downstream of catalytic converter | 1F |
| M16/45b1 | Right Hall sensor | 4D |
| M16/45b2 | Left Hall sensor | 4D |
| M16/45m1 | Right actuator motor | 4C |
| M16/45m2 | Left actuator motor | 4C |
| N3/10 | ME-SFI [ME] control unit | 4E |
