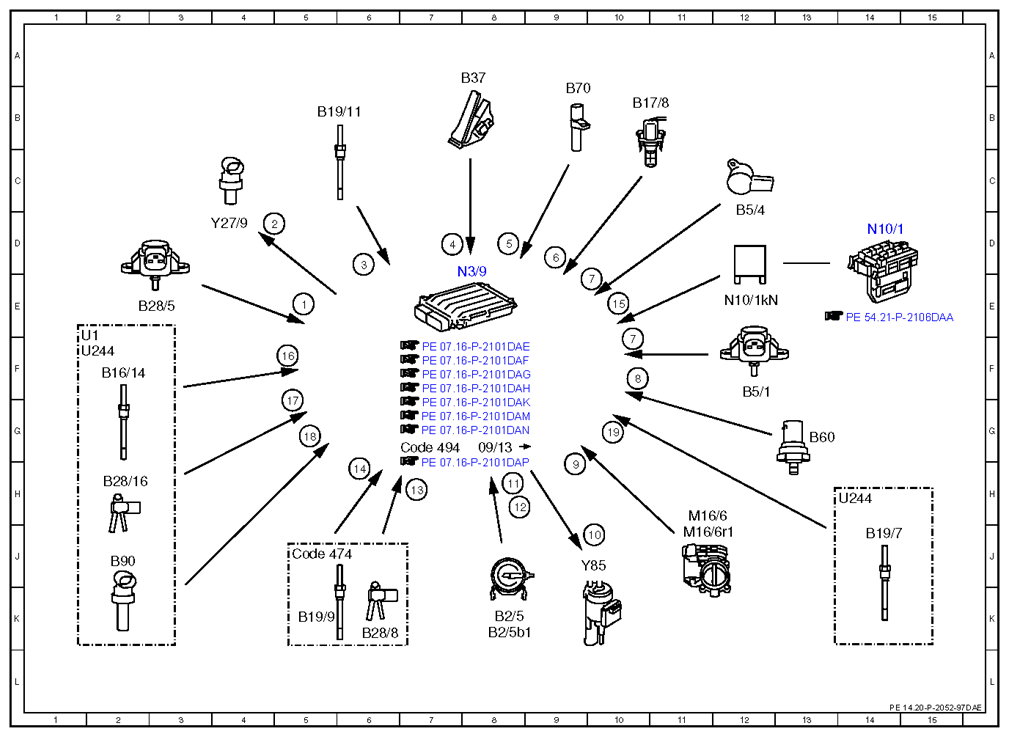

Electrical function schematic for exhaust gas recirculation - PE14.20-P-2052-97DAE
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 651 in MODEL 212 (except 212.098/298)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Pressure sensor downstream of air filter, signal | 5E |
| 10 | Exhaust gas recirculation cooler bypass switchover valve, actuation | 10J |
| 11 | Engine load, signal | 8H |
| 12 | Intake air temperature sensor, signal | 8H |
| 13 | Differential pressure sensor (DPF), signal | 7H |
| 14 | Temperature sensor upstream of diesel particulate filter, signal | 6H |
| 15 | Circuit 87, status | 10E |
| 16 | Exhaust gas recirculation temperature sensor, signal | 5F |
| 17 | Differential pressure sensor (DPF), signal | 5G |
| 18 | Exhaust gas recirculation cooling bypass flap Hall sensor, signal | 5G |
| 19 | Temperature sensor upstream of catalytic converter, signal | 10G |
| 2 | Exhaust gas recirculation actuator, actuation | 4D |
| 3 | Temperature sensor upstream of turbocharger, signal | 6D |
| 4 | Accelerator pedal sensor, signal | 7D |
| 5 | Engine speed, signal | 8D |
| 6 | Charge air temperature sensor, signal | 9D |
| 7 | Boost pressure sensor, signal | 10F |
| 7 | Boost pressure sensor, signal | 10E |
| 8 | Exhaust pressure sensor, signal | 10F |
| 9 | Throttle valve actuator, signal | 9H |
| B16/14 | Exhaust gas recirculation temperature sensor | 2F |
| B17/8 | Charge air temperature sensor | 10B |
| B19/11 | Temperature sensor upstream of turbocharger | 5B |
| B19/7 | Temperature sensor upstream of catalytic converter | 14J |
| B19/9 | Temperature sensor upstream of diesel particulate filter | 5K |
| B2/5 | Hot film mass air flow sensor | 8K |
| B2/5b1 | Intake air temperature sensor | 8K |
| B28/16 | Differential pressure sensor/diesel particulate filter for onboard diagnostics (OBD) | 2H |
| B28/5 | Pressure sensor downstream of air filter | 2E |
| B28/8 | Differential pressure sensor (DPF) | 6K |
| B37 | Accelerator pedal sensor | 7A |
| B5/1 | Boost pressure sensor | 12F |
| B5/4 | Low-pressure turbocharger boost pressure sensor | 12D |
| B60 | Exhaust pressure sensor | 13G |
| B70 | Crankshaft Hall sensor | 9B |
| B90 | Exhaust gas recirculation cooling bypass flap Hall sensor | 2J |
| Code 474 | Diesel particulate filter | 5J |
| Code 494 | USA version | 7G |
| M16/6 | Throttle valve actuator | 11H |
| M16/6r1 | Actual value potentiometer 1 | 11J |
| N10/1 | Front SAM control unit with fuse and relay module | 14D |
| N10/1kN | Engine circuit 87 relay | 12E |
| N3/9 | CDI control unit | 8E |
| U1 | Valid for USA | 1F |
| U244 | Valid for BlueTEC | 14H |
| U244 | Valid for BlueTEC | 1F |
| Y27/9 | Exhaust gas recirculation actuator | 4D |
| Y85 | Exhaust gas recirculation cooler bypass switchover valve | 9J |
