Electrical function schematic for exhaust gas recirculation - PE14.20-P-2052-97DAC

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 272.98 in MODEL 212

Code:	Designation:	Position:
B2/5	Hot film mass air flow sensor	7F
B28	Pressure sensor	1F
M16/45b1	Right Hall sensor	4H
M16/45b2	Left Hall sensor	4H
M16/45m1	Right actuator motor	4C
M16/45m2	Left actuator motor	4C
N3/10	ME-SFI [ME] control unit	4E

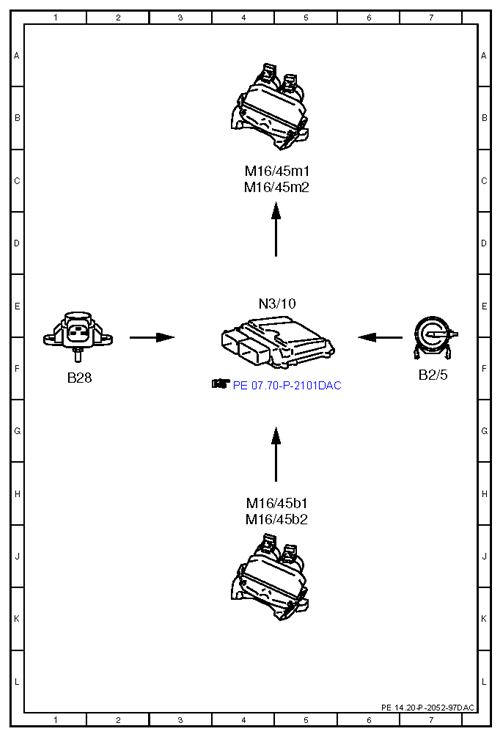

Fig 1: Exhaust Gas Recirculation Electrical Function Schematic

Courtesy of MERCEDES-BENZ USA
