Fill AdBlue (R) tank - AP14.40-P-1410BT

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 164, 166, 204, 205, 207, 212, 218, 221, 222, 251, 292 with CODE U42 (BlueTEC diesel exhaust treatment (SCR))

MODEL 166, 172, 205, 207, 212, 218, 222, 253, 292 with CODE U77 (Diesel Emission Control BLUETEC (SCR))

MODEL 205, 222, 253 with CODE U79 (BLUETEC (SCR) diesel exhaust treatment, generation 3)

MODEL 463 with ENGINE 642 with CODE M020 (BLUETEC)

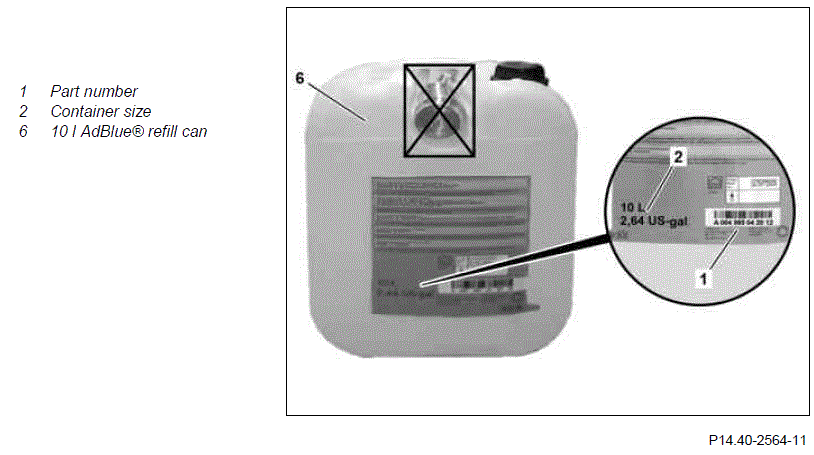

Fig 1: Part Number, Container Size & AdBlue Refill Can
G00554029Courtesy of MERCEDES-BENZ USA

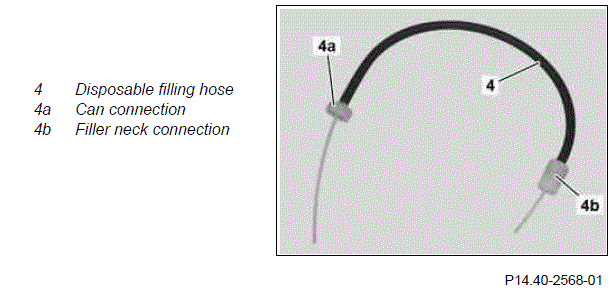

Fig 2: Disposable Filling Hose, Can Connection & Filler Neck Connection
G00554030Courtesy of MERCEDES-BENZ USA

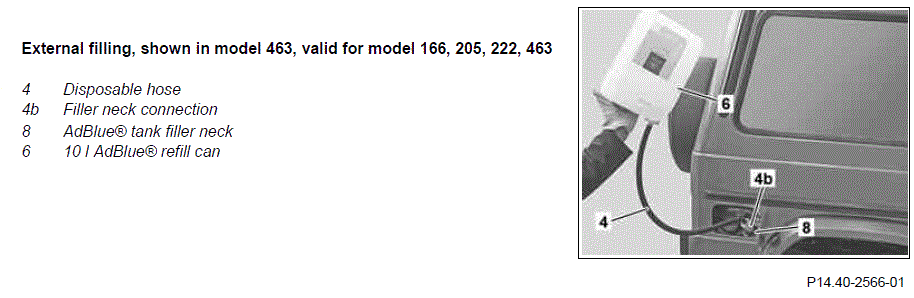

External filling, shown in model 463, valid for model 166, 205, 222, 463

Fig 3: External AdBlue Filling - Shown In Model 463
G00556871Courtesy of MERCEDES-BENZ USA

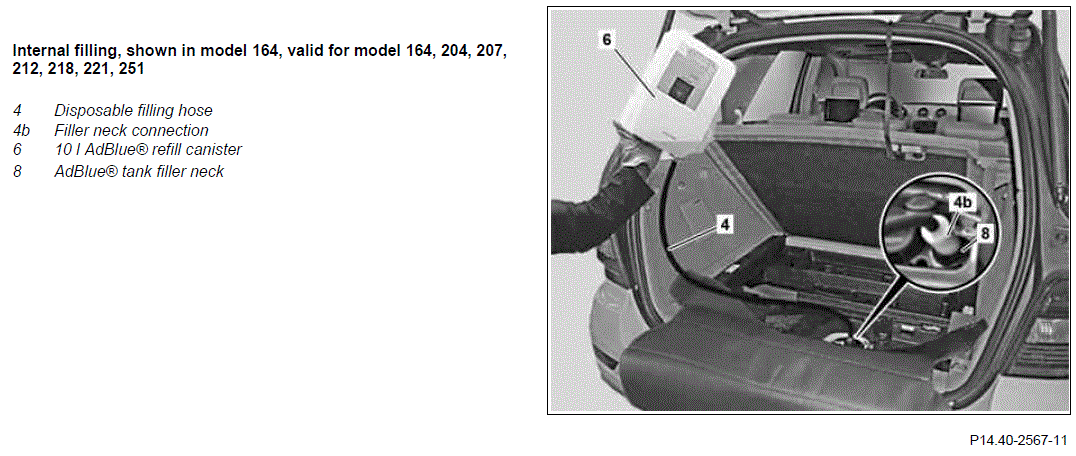

Internal filling, shown in model 164, valid for model 164, 204, 207, 212, 218, 221, 251

Fig 4: Internal AdBlue Filling - Shown In Model 164
G00556872DANGERNOTESCourtesy of MERCEDES-BENZ USA
DANGER Risk of burn injuries and scalding  when working at AdBlue lines and the components attached to them. Risk of injury  to skin and eyes when handling AdBlue. Risk of poisoning  caused by swallowing AdBlue Pour AdBlue into suitable containers only. Wait until the pressure is released before starting any work on the exhaust aftertreatment system. AS14.40-Z-0001-01A
NOTES Notes on use, material properties and handling of AdBlue® AH14.40-P-0001-02A
  Filling
1.1 Fill AdBlue® tank Vehicle with internal filling Model 164, 204, 207, 212, 218, 221, 251 with code U42 (BlueTEC diesel exhaust treatment (SCR))
Model 172, 207, 212, 218 with code U77 (Diesel Emission control BLUETEC (SCR))
One-way filling hose 1
0 l can of AdBlue®		 AP14.40-P-1410-01A
*BR00.45-Z-1001-17A
*BR00.45-Z-1003-17A
1.2 Fill AdBlue® tank Vehicle with external filling Model 166, 205, 222, 253, with code U77 (Diesel Emission control BLUETEC (SCR))
Model 166, 205, 222, 292 with code U42 (BlueTEC diesel exhaust treatment (SCR))
Model 205, 222, 253 with code U79 (BLUETEC (SCR) diesel exhaust treatment, generation 3)
Model 463.306/336/346 with engine 642.886 with code M020 (BLUETEC)
One-way filling hose
10 l can of AdBlue®		 AP14.40-P-1410-02A
*BR00.45-Z-1001-17A
*BR00.45-Z-1003-17A
REPAIR MATERIAL

Number Designation Order number
BR00.45-Z-1001-17A One-way filling hose A 000 583 22 04
BR00.45-Z-1003-17A 10 l can of AdBlue® A 004 989 04 20 12
FILLING CAPACITY FOR BLUETEC DIESEL EXHAUST TREATMENT (SCR)

Number Designation MODEL 164.1 with ENGINE 642 with CODE U42 MODEL 164.8 with ENGINE 642 with CODE U42
BF14.40-P-1001-01A AdBlue® tank Initial fill capacity Liter 28, 1 33, 3
Service fill capacity Liter 26, 6 31, 7
Specification Approved NOx reducing agent ("AD Blue"). See https://bevo.mercedes-benz.com/index.php?language_id=1 Approved NOx reducing agent ("AD Blue"). See https://bevo.mercedes-benz.com/index.php?language_id=1
FILLING CAPACITY FOR BLUETEC DIESEL EXHAUST TREATMENT (SCR)

Number Designation MODEL 166.0 with ENGINE 642, 651 with CODE U42 MODEL 166.8 with ENGINE 642 with CODE U42
BF14.40-P-1001-01A AdBlue® tank Initial fill capacity Liter 27, 8 32, 3
Service fill capacity Liter 27, 0 30, 7
Specification Approved NOx reducing agent ("AD Blue"). See https://bevo.mercedes-benz.com/index.php?language_id=1 Approved NOx reducing agent ("AD Blue"). See https://bevo.mercedes-benz.com/index.php?language_id=1
FILLING CAPACITY FOR BLUETEC DIESEL EXHAUST TREATMENT (SCR)

Number Designation MODEL 207.3 with ENGINE 642, 651 with CODE U77 MODEL 207.4 with ENGINE 642, 651 with CODE U77
BF14.40-P-1001-01A AdBlue® tank Initial fill capacity Liter 29, 2 26, 0
Service fill capacity Liter 28, 2 25, 5
Specification Approved NOx reducing agent ("AD Blue"). See https://bevo.mercedes-benz.com/index.php?language_id=1 Approved NOx reducing agent ("AD Blue"). See https://bevo.mercedes-benz.com/index.php?language_id=1
FILLING CAPACITY FOR BLUETEC DIESEL EXHAUST TREATMENT (SCR)

Number Designation MODEL 212 with ENGINE 642 with CODE U42 MODEL 218 with ENGINE 642 with CODE U42
BF14.40-P-1001-01A AdBlue® tank Initial fill capacity Liter 25, 5 25, 5
Service fill capacity Liter 24, 5 24, 5
Specification Approved NOx reducing agent ("AD Blue"). See https://bevo.mercedes-benz.com/index.php?language_id=1 Approved NOx reducing agent ("AD Blue"). See https://bevo.mercedes-benz.com/index.php?language_id=1
FILLING CAPACITY FOR BLUETEC DIESEL EXHAUST TREATMENT (SCR)

Number Designation MODEL 221 with ENGINE 642 with CODE U42 MODEL 222 with ENGINE 642
BF14.40-P-1001-01A AdBlue® tank Initial fill capacity Liter 26, 0 26, 0
Service fill capacity Liter 25, 0 25, 5
Specification Approved NOx reducing agent ("AD Blue"). See https://bevo.mercedes-benz.com/index.php?language_id=1 Approved NOx reducing agent ("AD Blue"). See https://bevo.mercedes-benz.com/index.php?language_id=1
FILLING CAPACITY FOR BLUETEC DIESEL EXHAUST TREATMENT (SCR)

Number Designation MODEL 251 with ENGINE 642 with CODE U42 MODEL 463 with ENGINE 642
BF14.40-P-1001-01A AdBlue® tank Initial fill capacity Liter 29, 0 16, 0
Service fill capacity Liter 28, 2 15, 0
Specification Approved NOx reducing agent ("AD Blue"). See https://bevo.mercedes-benz.com/index.php?language_id=1 Approved NOx reducing agent ("AD Blue"). See https://bevo.mercedes-benz.com/index.php?language_id=1
FILLING CAPACITY FOR BLUETEC DIESEL EXHAUST TREATMENT (SCR)

Number Designation Model 205 except code U85 Model 205 with code U85
BF14.40-P-1001-01B AdBlue tank Filling capacity for the initial filling Liter 9, 0 25, 0
Filling capacity for a service filling Liter 8, 5 24, 5
Specification Approved NOx reducing agent ("AD Blue"). See https://bevo.mercedes-benz.com/index.php?language_id=1 Approved NOx reducing agent ("AD Blue"). See https://bevo.mercedes-benz.com/index.php?language_id=1
