Separate front roof frame - AR65.20-P-1006-02EL

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 212.0, 218.3

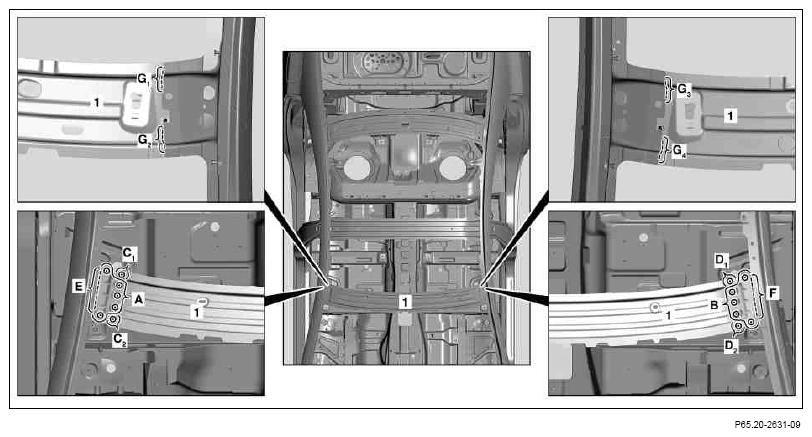

Fig 1: Front Roof Frame Spot Weld Areas

Courtesy of MERCEDES-BENZ USA

Expose spot welds on front roof frame (1) and cut out (areas A, B, C₁ , C₂ , D₁ and D₂ ).
Cut out spot welds on front roof frame (1) through double panel thickness (areas C1, C2, D1 and D2).
Cut MIG-solder seams on front roof frame (1) (areas E, F, G₁ , G₂ , G₃ and G₄ ).
Remove damaged front roof frame (1).

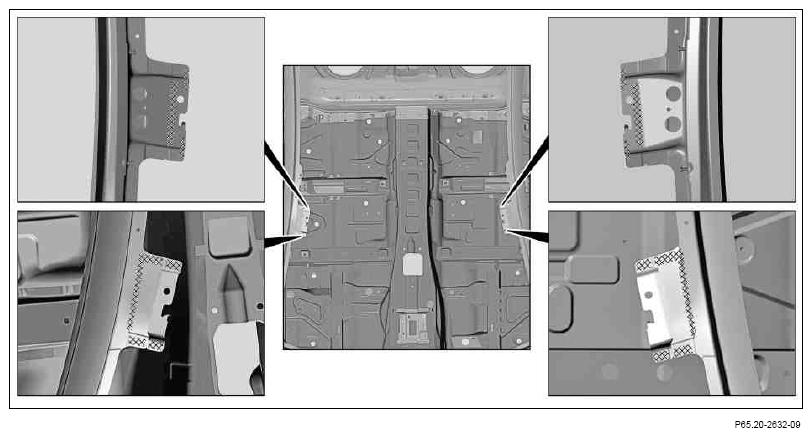

Fig 2: Front Roof Frame Connection Surfaces
Courtesy of MERCEDES-BENZ USA
Sand connection surfaces down to bare metal in the cross-hatched areas.
Grind spot weld flanges down to bare metal on both sides.
Remove shavings and drill chips.
Coat insides of spot weld flanges with zinc dust paint.
