Separate center roof paneling - AR65.10-P-1000-02EWB

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 212.0 except CODE (413) Panoramic glass roof with top sliding roof except CODE (414) Power glass tilting/sliding roof

Fig 1: Identifying Set Of Spacer Blocks (216 589 02 23 00)

Courtesy of MERCEDES-BENZ USA

Insert set of spacer blocks on undamaged side of roof duct between center roof paneling (1) and side roof paneling and adjust dimension.
So that the center roof paneling (1) can be adapted with the adjusted set of spacer blocks when installing.
Mark position on vehicle and dimensions for set of spacer blocks.
Expose spot welds at front of center roof paneling (1) (area A).
Cut out spot welds at front of center roof paneling (1) (area A).

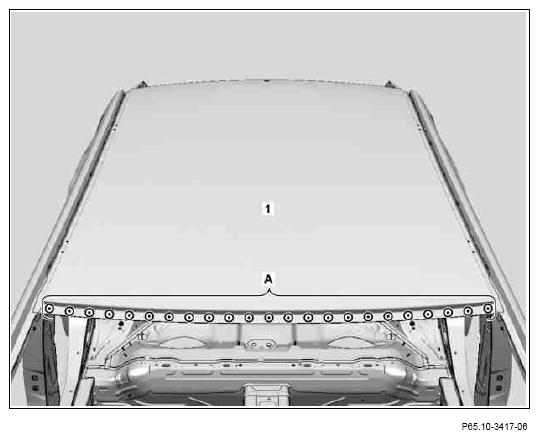

Fig 2: Front Of Center Roof Paneling Spot Welds (Area A)
Courtesy of MERCEDES-BENZ USA
Expose spot welds at rear of center roof paneling (1) (area B).
Cut out spot welds at rear of center roof paneling (1) (area B).

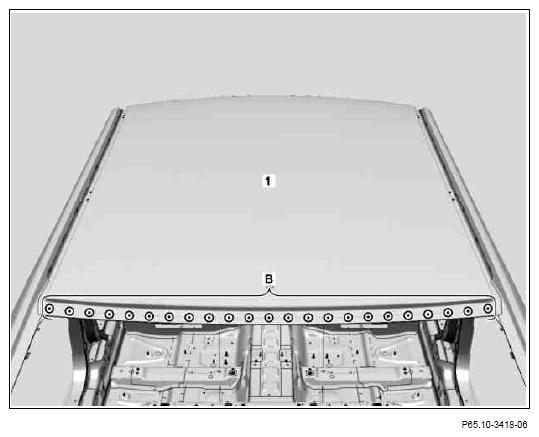

Fig 3: Front Of Center Roof Paneling Spot Welds (Area B)
Courtesy of MERCEDES-BENZ USA
Expose spot welds in left and right roof duct (arrows).
Drill out spot welds in left and right roof duct with Ø 4.8 mm BTR drill bit (arrows).
Drill 6 holes on each side of vehicle. 4.8 x 70 BTR drill bit

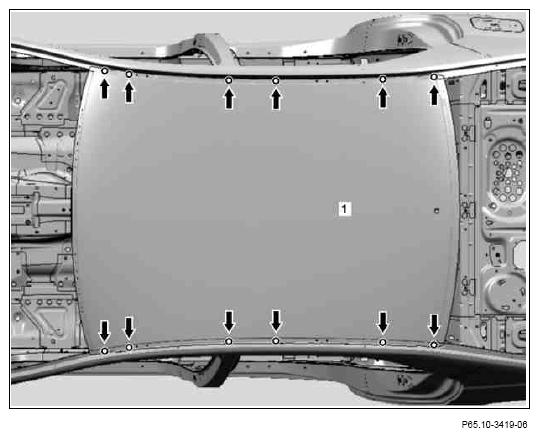

Fig 4: Locating Roof Duct Spot Welds
Courtesy of MERCEDES-BENZ USA
Heat center roof paneling (1) in crosshatched areas.
Crosshatched areas are bonded.
Remove damaged center roof paneling (1)

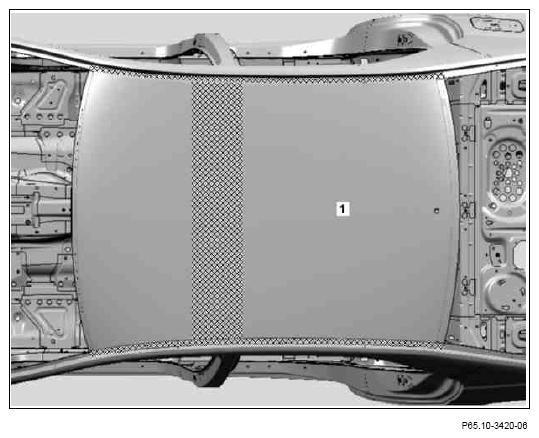

Fig 5: Heating Center Roof Paneling In Crosshatched Areas
Courtesy of MERCEDES-BENZ USA
Remove sealant residues from center roof bow (area C).
Sand connection surfaces down to bare metal in the crosshatched areas.
Grind spot weld flanges down to bare metal on both sides.
Remove drill shavings.
Coat insides of spot weld flanges with zinc dust paint.
Do not coat bonding surfaces with zinc dust paint to prevent adhesion problems (areas C₁ and C₂ ).

Observe pretreatment of bonding surfaces.

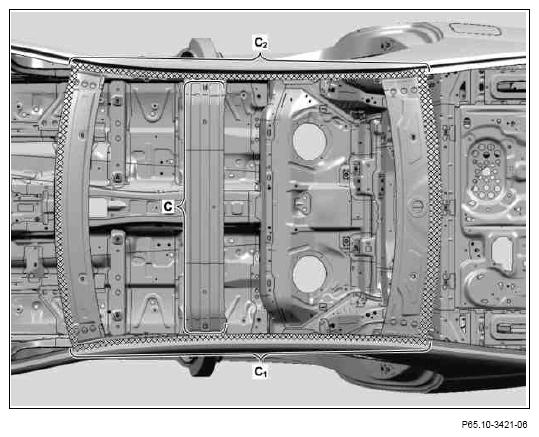

Fig 6: Bonding Surfaces (Areas C1 And C2)
Courtesy of MERCEDES-BENZ USA
