Separate center roof paneling - AR65.10-P-1000-02ESA

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 212.2 except CODE (413) Panoramic glass roof with top sliding roof

Fig 1: Identifying Set Of Spacer Blocks (216 589 02 23 00)

Courtesy of MERCEDES-BENZ USA

Insert spacer blocks on undamaged side of roof duct between center roof paneling and side roof paneling and adjust dimension.
So that the middle roof paneling can be fitted with the adjusted spacer blocks during installation.
Mark position on vehicle and dimension of spacer blocks.

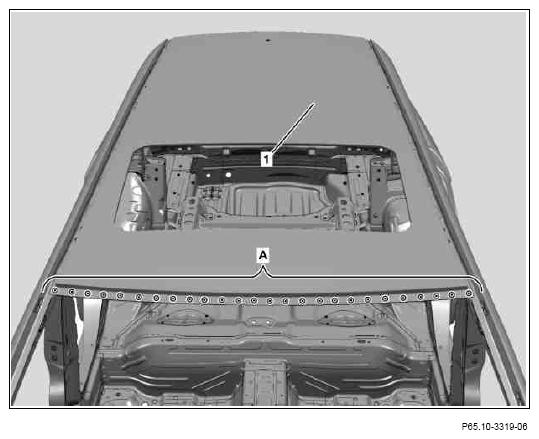

Expose spot welds on center roof paneling (1) and cut out (areas A, B, C, D and arrows).

Fig 2: Center Roof Paneling Spot Weld Areas (1 Of 3)
Courtesy of MERCEDES-BENZ USA

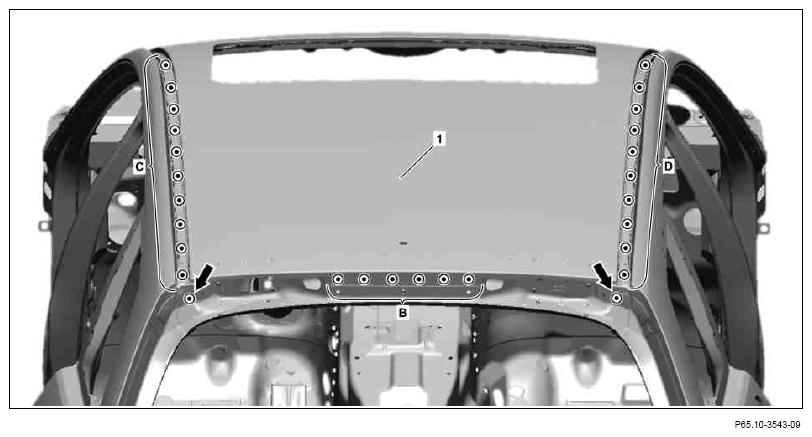

Fig 3: Center Roof Paneling Spot Weld Areas (2 Of 3)
Courtesy of MERCEDES-BENZ USA

Fig 4: Center Roof Paneling Spot Weld Areas (3 Of 3)
Courtesy of MERCEDES-BENZ USA

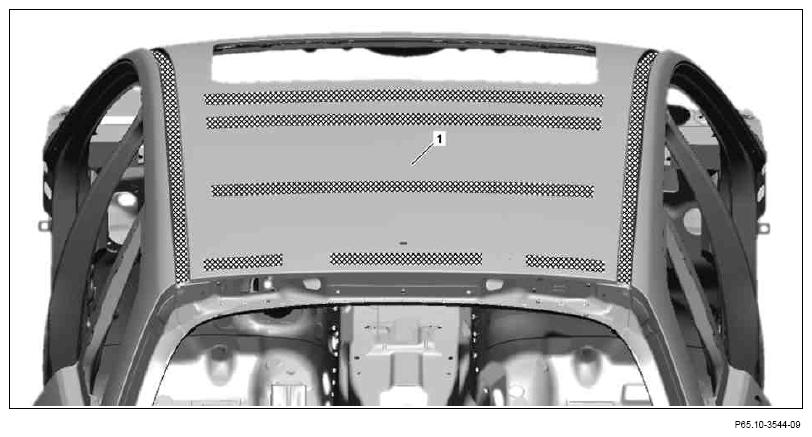

Heat center roof paneling (1) in crosshatched areas.
Crosshatched areas are bonded.
Remove damaged center roof paneling (1)
Sand connection surfaces down to bare metal in the cross-hatched areas.
Grind spot weld flanges down to bare metal on both sides.
Remove drill shavings.
Coat insides of spot weld flanges with zinc dust paint.
Do not coat bonding surfaces with zinc dust paint to prevent adhesion problems (areas E and F).

Observe pretreatment of bonding surfaces.

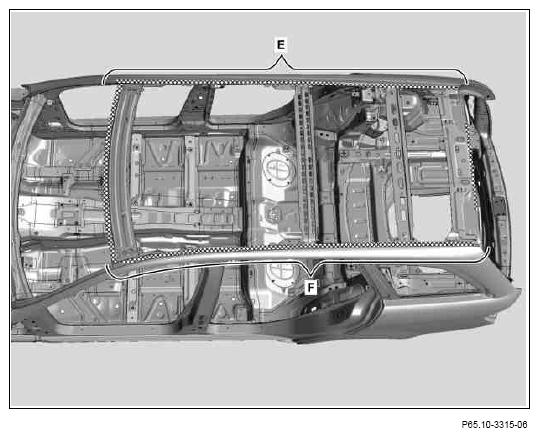

Fig 5: Bonding surfaces (Areas E And F)
Courtesy of MERCEDES-BENZ USA
