Prepare roof paneling at side - AR65.10-P-1020-02WX

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 117.9, 156, 176, 204.9, 212.2, 242, 246

The following operation steps are shown on MODEL 204.9.

- 1.1) MODEL 156
  Mark separating points on side roof paneling (1) (areas A, B, and C).

  Transfer dimensions from vehicle (areas A, B and C).
- 1.2) MODEL 117.9, 176, 204.9, 212.2, 242, 246
  Mark separating points on side roof paneling (1) (areas A, B, C and D).

  Transfer dimensions from vehicle (area A, B C and D). On MODEL 204.9 scribe separating point for crimping flange approx. 10 mm offset from Y-markings (area D).

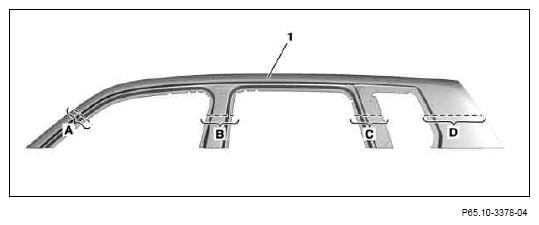

Fig 1: Side Roof Paneling Separating Points

Courtesy of MERCEDES-BENZ USA

1. 2.1) MODEL 156
  Cut side roof paneling (1) at separating points (areas A, B and C).
2. 2.2) MODEL 117.9, 176, 204.9, 212.2, 242, 246
  Cut side roof paneling (1) at separation points (area A, B, C and D).
MODEL 204.9
Crimp connecting flange on side roof paneling (1) toward inside (area D₁ ).
Punch Ø 6 mm holes in side roof paneling (1) (area E).
Grind mating surfaces down to bare metal in the cross-hatched inner C-pillar sidewall.
Sand down spot weld flanges to bare metal on both sides.
Remove shavings and drill chips.
Coat insides of spot weld flanges with zinc dust paint.

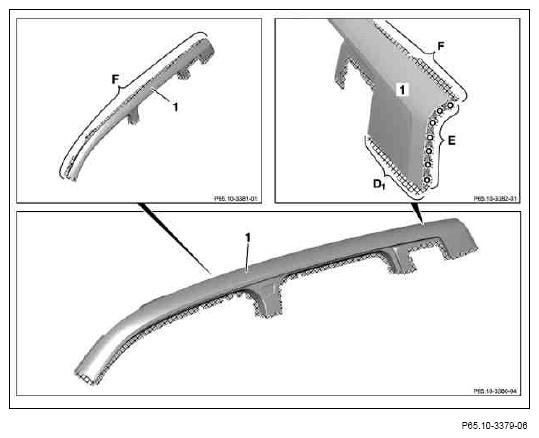

Fig 2: Crimping Connecting Flange On Side Roof Paneling
Courtesy of MERCEDES-BENZ USA

Do not apply zinc dust paint to bonding surfaces (area F). Otherwise adhesion problems may occur.

Observe pretreatment of bonding surfaces.
