Prepare roof paneling at side - AR65.10-P-1020-02EW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212.0 /1

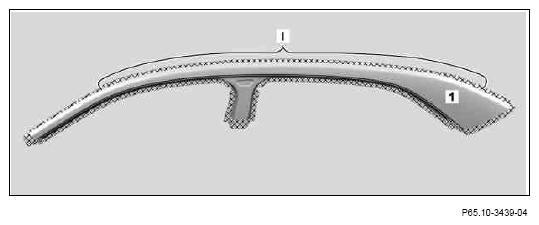

- Grind mating surfaces on side roof paneling (1) down to bare metal in crosshatched areas.
Grind spot weld flanges down to bare metal on both sides.
- Coat insides of spot weld flanges with zinc dust paint.
Do not coat bonding surfaces bonding surfaces on both sides with zinc dust paint in area I.
