Prepare rear roof frame for installation - AR65.20-P-1008-02EL

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 212.0, 218.3

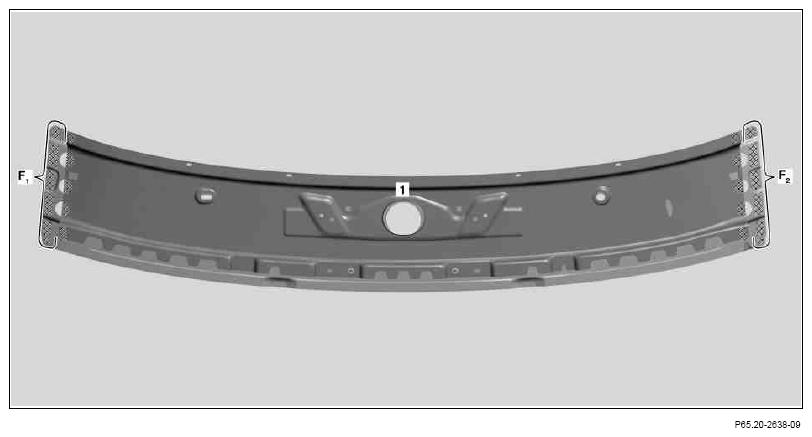

Fig 1: Rear Roof Frame Mating Surfaces

Courtesy of MERCEDES-BENZ USA

Grind mating surfaces on rear roof frame (1) down to bare metal in the cross-hatched areas.
Grind spot weld flanges down to bare metal on both sides.
Coat insides of spot welding flange on rear roof frame (1) with zinc dust paint.
Do not coat bonding surfaces with zinc dust paint to prevent adhesion problems (areas F₁ and F₂ ).
