Prepare front roof frame for installation - AR65.20-P-1006-04EL
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212.0, 218.3

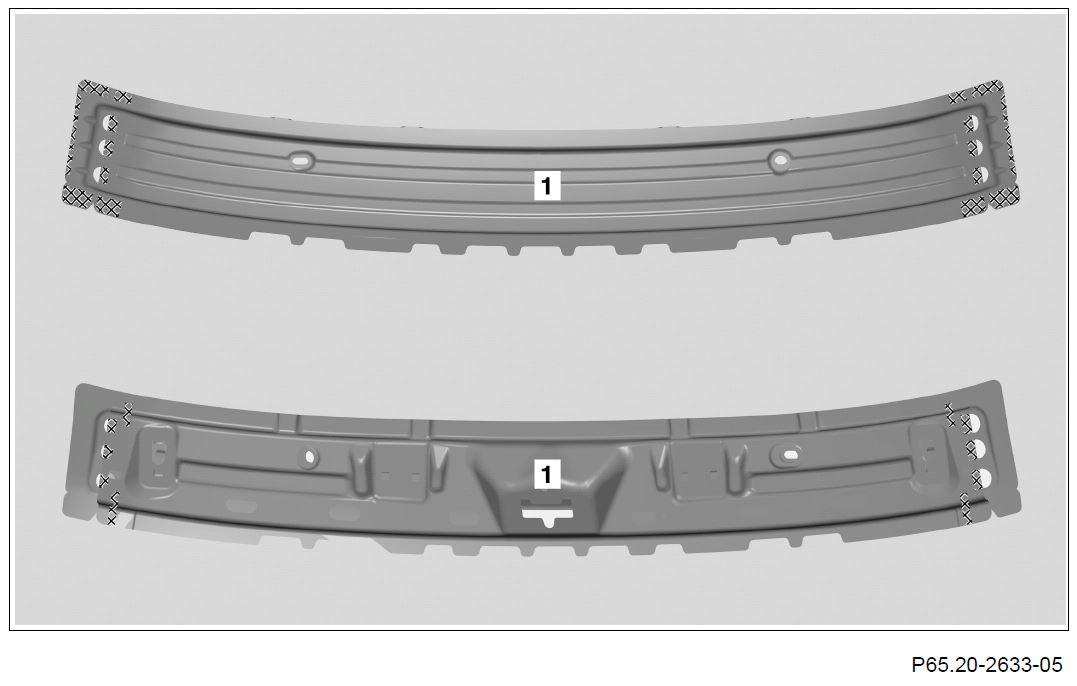

- Grind mating surfaces on front roof frame (1) down to bare metal in the crosshatched areas.
Grind spot weld flanges down to bare metal on both sides.
- Coat insides of spot welding flange on front roof frame (1) with zinc dust paint.
