Install side roof paneling and weld in - AR65.10-P-1020-03EW

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 212.0/1

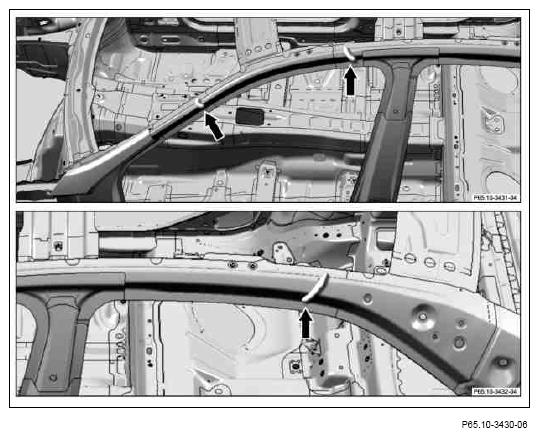

Apply sealant to foam parts (arrows).

Fig 1: Applying Sealant To Foam Parts
Courtesy of MERCEDES-BENZ USA

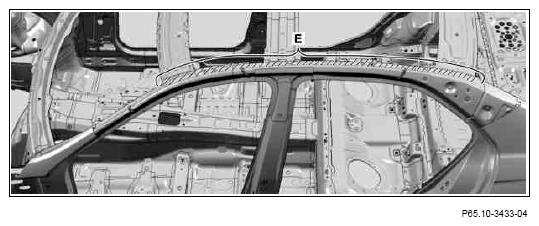

Apply 2-component adhesive in hatched areas (area E).
Observe pretreatment of bonding surfaces. Refer to the manufacturer's information for the curing and working times of 2-component adhesive.

Fig 2: Side Roof Paneling Adhesive Applying Area
Courtesy of MERCEDES-BENZ USA
Install center roof paneling and side roof paneling (1) with spacers and fit.
Check and adjust gap dimensions.
Fix side roof paneling (1) in place.
Remove center roof paneling and spacers.

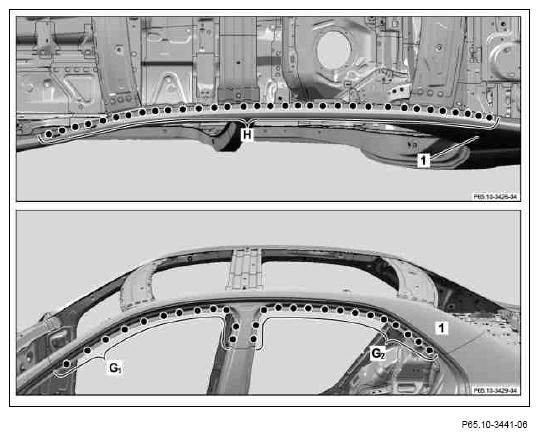

Side roof paneling (1) (areas G₁ , G₂ and H).

Fig 3: Installing Center Roof Paneling And Side Roof Paneling
Courtesy of MERCEDES-BENZ USA

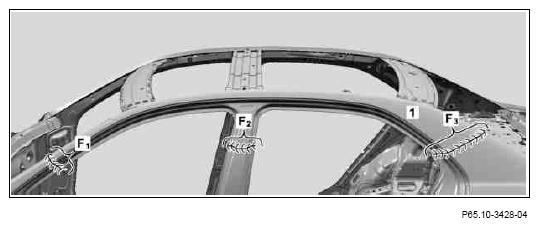

Side roof paneling (1) (areas F₁ , F₂ and F₃ ).
Perform inert gas welding in intervals, allow to cool down in between to reduce heat distortion.

Fig 4: Side Roof Paneling Welding Areas
Courtesy of MERCEDES-BENZ USA
Grind inert gas welds down flat on side roof paneling (1) (areas F₁ , F₂ and F₃ ).
Clean welds on side roof paneling (1).
Solder surfaces on side roof paneling (1) in areas F₁ , F₂ and F₃ with body solder and smooth.
Remove grinding and drill shavings using wet/dry vacuum cleaner.
