Install rear roof frame - AR65.20-P-1008-03EL
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212.0, 218.3
- Install rear roof frame (1) and fit.
- Remove rear roof frame (1)
- Apply 2-component adhesive in cross-hatched areas.
Observe pretreatment of bonding surfaces. Refer to the manufacturer's information for the curing and working times of 2-component adhesive.
- Install rear roof frame (1) and fix in place.

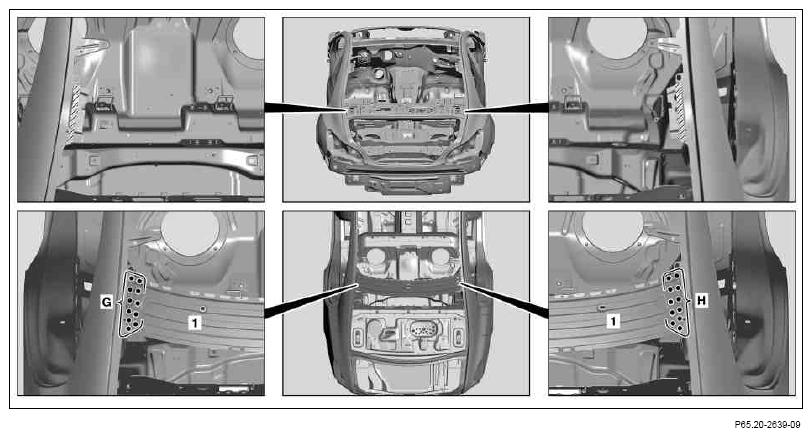

- Rear roof frame (1)
(areas G and H).
- Clean weld joints.
- Remove shavings.
