Install front roof frame - AR65.20-P-1006-05EL

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 212.0, 218.3

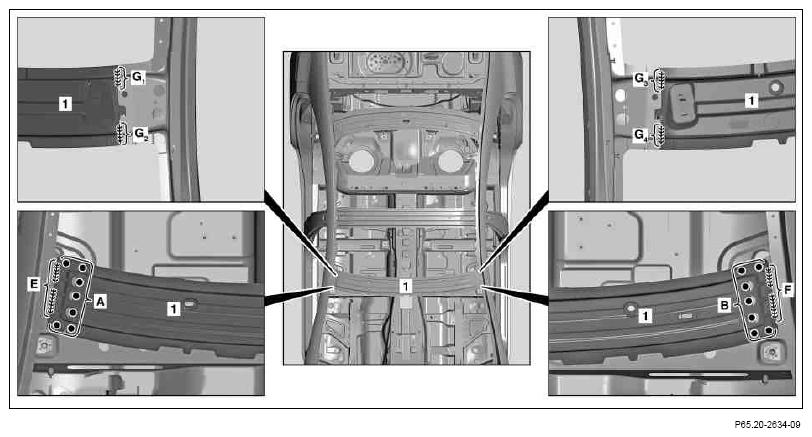

Fig 1: Front Roof Frame Weld Joints
G10241693Courtesy of MERCEDES-BENZ USA
  1. Install front roof frame (1), fit and fix in place.
  2. Front roof frame (1) POLARIZATION RESISTANCE SINGLE-ROW SPOT WELD (areas A and B).
  3. Front roof frame (1) SHIELDED GAS SEAM WELD (areas E, F, G1 , G2 , G3 and G4 ).
  4. Clean weld joints on front roof frame (1).
  5. Remove shavings.
