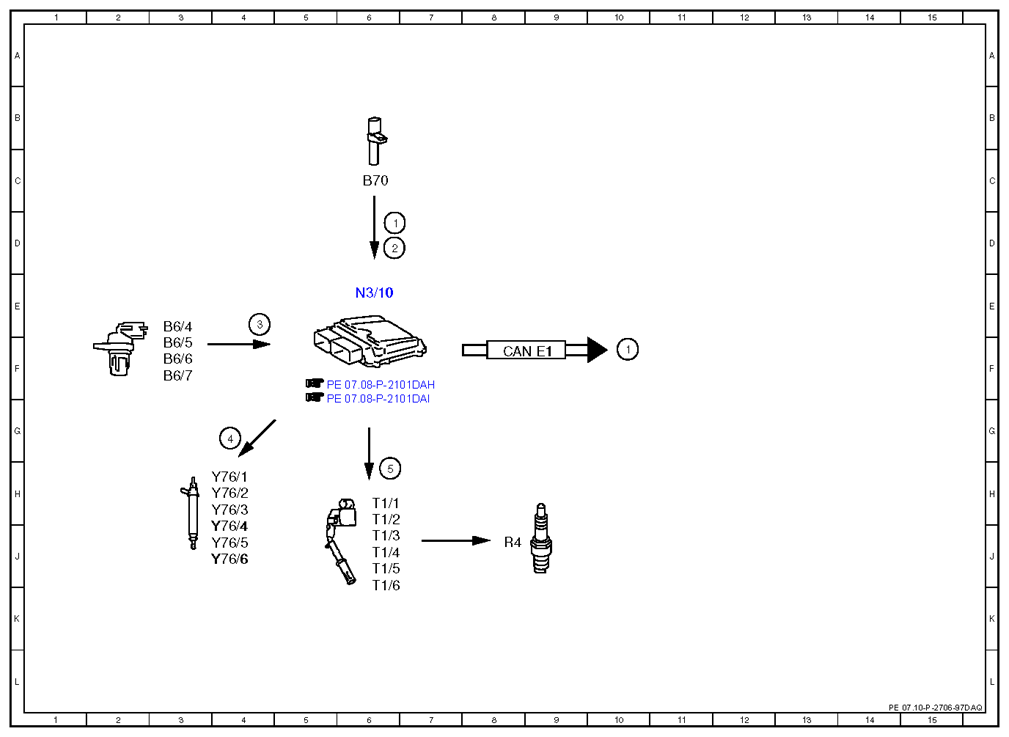

Electrical function schematic, synchronization of the injection and firing order - PE07.10-P-2706-97DAQ
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 276.8/9 in MODEL 212 (except 212.095) as of model year 2014
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Engine speed, signal | 6D |
| 1 | Engine speed, signal | 10F |
| 2 | Crankshaft Hall sensor, signal | 6D |
| 3 | Camshaft Hall sensor, signal | 4E |
| 4 | Fuel injectors, actuation | 4G |
| 5 | Ignition coils, actuation | 6H |
| B6/4 | Left intake camshaft Hall sensor | 3E |
| B6/5 | Right intake camshaft Hall sensor | 3F |
| B6/6 | Left exhaust camshaft Hall sensor | 3F |
| B6/7 | Right exhaust camshaft Hall sensor | 3F |
| B70 | Crankshaft Hall sensor | 6C |
| CAN E1 | Chassis CAN 1 | 8F |
| N3/10 | ME-SFI [ME] control unit | 6E |
| R4 | Spark plugs | 8J |
| T1/1 | Cylinder 1 ignition coil | 6H |
| T1/2 | Cylinder 2 ignition coil | 6H |
| T1/3 | Cylinder 3 ignition coil | 6J |
| T1/4 | Cylinder 4 ignition coil | 6J |
| T1/5 | Cylinder 5 ignition coil | 6J |
| T1/6 | Cylinder 6 ignition coil | 6K |
| Y76/1 | Cylinder 1 fuel injector | 4H |
| Y76/2 | Cylinder 2 fuel injector | 4H |
| Y76/3 | Cylinder 3 fuel injector | 4H |
| Y76/4 | Cylinder 4 fuel injector | 3J |
| Y76/5 | Cylinder 5 fuel injector | 4J |
| Y76/6 | Cylinder 6 fuel injector | 3J |
