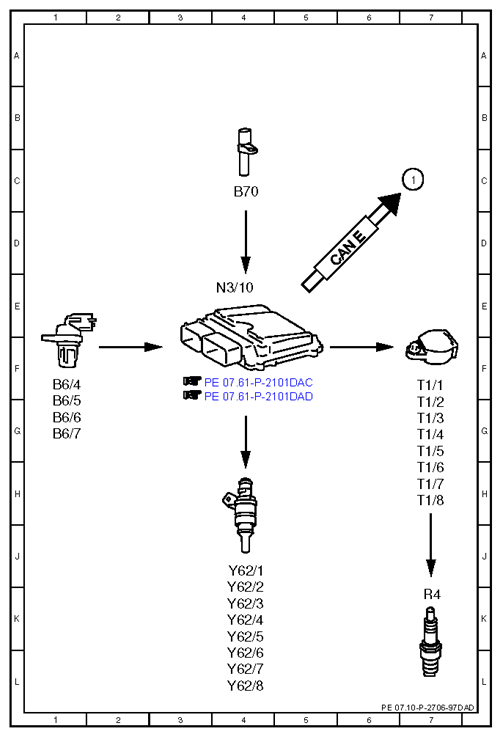

Electrical function schematic, synchronization of the injection and firing order - PE07.10-P-2706-97DAD
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 156 in MODEL 212
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Engine speed, signal | 7C |
| B6/4 | Left intake camshaft Hall sensor | 1F |
| B6/5 | Right intake camshaft Hall sensor | 1G |
| B6/6 | Left exhaust camshaft Hall sensor | 1G |
| B6/7 | Right exhaust camshaft Hall sensor | 1G |
| B70 | Crankshaft Hall sensor | 4C |
| CAN E | Chassis CAN | 6D |
| N3/10 | ME-SFI [ME] control unit | 4E |
| R4 | Spark plugs | 7K |
| T1/1 | Cylinder 1 ignition coil | 7F |
| T1/2 | Cylinder 2 ignition coil | 7G |
| T1/3 | Cylinder 3 ignition coil | 7G |
| T1/4 | Cylinder 4 ignition coil | 7G |
| T1/5 | Cylinder 5 ignition coil | 7G |
| T1/6 | Cylinder 6 ignition coil | 7H |
| T1/7 | Cylinder 7 ignition coil | 7H |
| T1/8 | Cylinder 8 ignition coil | 7H |
| Y62/1 | Cylinder 1 injection valve | 4J |
| Y62/2 | Cylinder 2 injection valve | 4K |
| Y62/3 | Cylinder 3 injection valve | 4K |
| Y62/4 | Cylinder 4 injection valve | 4K |
| Y62/5 | Cylinder 5 injection valve | 4K |
| Y62/6 | Cylinder 6 injection valve | 4L |
| Y62/7 | Cylinder 7 injection valve | 4L |
| Y62/8 | Cylinder 8 injection valve | 4L |
