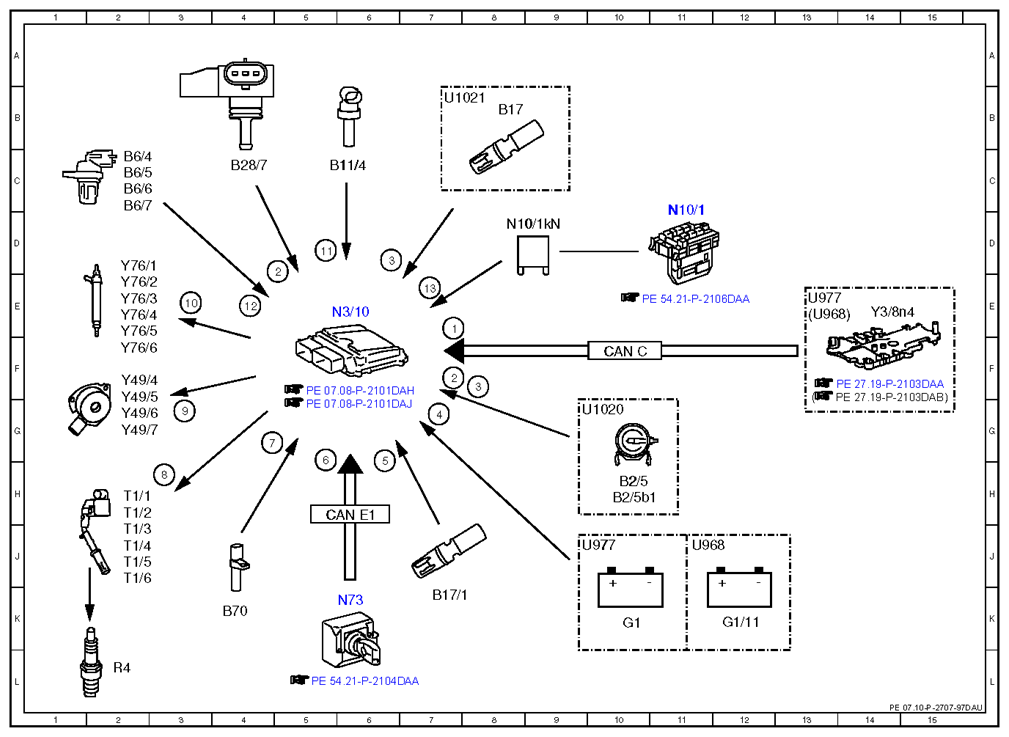

Electrical function schematic for start phase, post-start phase and warm-up enrichment - PE07.10-P-2707-97DAU
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 276.9 in MODEL 212.095 as of model year 2014
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Selector lever position, status | 7E |
| 10 | Fuel injectors, actuation | 3E |
| 11 | Coolant temperature sensor, signal | 5D |
| 12 | Camshaft Hall sensor, signal | 4E |
| 13 | Circuit 87, status | 7E |
| 2 | Engine load, signal | 7F |
| 2 | Engine load, signal | 5E |
| 3 | Intake air temperature sensor, signal | 8F |
| 3 | Intake air temperature sensor, signal | 6D |
| 4 | Circuit 30, status | 7G |
| 5 | Intake manifold intake air temperature sensor, signal | 6H |
| 6 | Circuit 50, status | 5H |
| 7 | Engine speed, signal | 4G |
| 8 | Ignition coils, actuation | 3H |
| 9 | Camshaft solenoids, actuation | 3G |
| B11/4 | Coolant temperature sensor | 6C |
| B17 | Intake air temperature sensor | 8B |
| B17/1 | Intake manifold intake air temperature sensor | 7K |
| B2/5 | Hot film mass air flow sensor | 10H |
| B2/5b1 | Intake air temperature sensor | 10H |
| B28/7 | Pressure sensor downstream of throttle valve | 4C |
| B6/4 | Left intake camshaft Hall sensor | 2C |
| B6/5 | Right intake camshaft Hall sensor | 2C |
| B6/6 | Left exhaust camshaft Hall sensor | 2C |
| B6/7 | Right exhaust camshaft Hall sensor | 2C |
| B70 | Crankshaft Hall sensor | 4K |
| CAN C | Drive train CAN | 10F |
| CAN E1 | Chassis CAN 1 | 6H |
| G1 | On-board electrical system battery | 10K |
| G1/11 | Rear on-board electrical system battery | 12K |
| N10/1 | Front SAM control unit with fuse and relay module | 11D |
| N10/1kN | Engine circuit 87 relay | 8D |
| N3/10 | ME-SFI [ME] control unit | 6E |
| N73 | Electronic ignition switch control unit | 6K |
| R4 | Spark plugs | 2L |
| T1/1 | Cylinder 1 ignition coil | 2H |
| T1/2 | Cylinder 2 ignition coil | 2H |
| T1/3 | Cylinder 3 ignition coil | 2J |
| T1/4 | Cylinder 4 ignition coil | 2J |
| T1/5 | Cylinder 5 ignition coil | 2J |
| T1/6 | Cylinder 6 ignition coil | 2J |
| U1020 | Valid for gasoline engine with stratified operation | 9G |
| U1021 | Not valid for gasoline engine with stratified operation | 7B |
| U968 | Valid for mild hybrid drive | 11J |
| U968 | Valid for mild hybrid drive | 13E |
| U977 | Not valid for mild hybrid drive | 9J |
| U977 | Not valid for mild hybrid drive | 13E |
| Y3/8n4 | Fully integrated transmission control unit | 14E |
| Y49/4 | Left intake camshaft solenoid | 2F |
| Y49/5 | Right intake camshaft solenoid | 2G |
| Y49/6 | Left exhaust camshaft solenoid | 2G |
| Y49/7 | Right exhaust camshaft solenoid | 2G |
| Y76/1 | Cylinder 1 fuel injector | 2D |
| Y76/2 | Cylinder 2 fuel injector | 2E |
| Y76/3 | Cylinder 3 fuel injector | 2E |
| Y76/4 | Cylinder 4 fuel injector | 2E |
| Y76/5 | Cylinder 5 fuel injector | 2E |
| Y76/6 | Cylinder 6 fuel injector | 2F |
