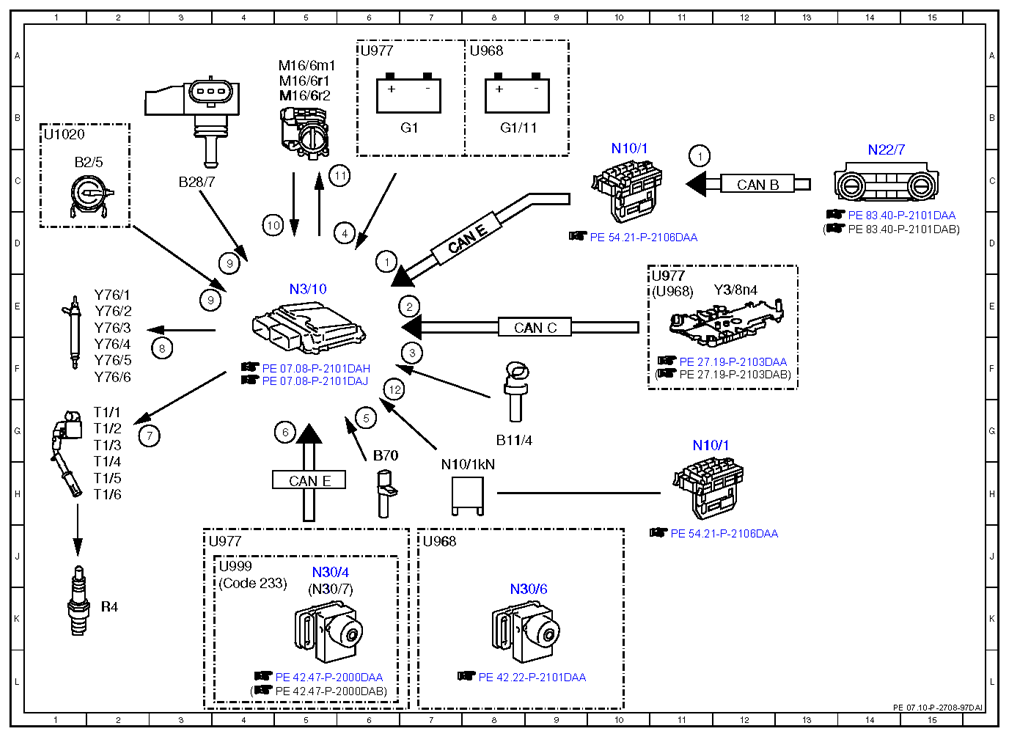

Electrical function schematic for rpm control - PE07.10-P-2708-97DAI
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 276.9 in MODEL 212 up to model year 2014
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Air conditioning, status | 6D |
| 1 | Air conditioning, status | 11C |
| 10 | Throttle valve position, signal | 4D |
| 11 | Throttle valve actuator motor, actuation | 5C |
| 12 | Circuit 87, status | 6F |
| 2 | Gear range, status | 7E |
| 3 | Coolant temperature sensor, signal | 7F |
| 4 | Circuit 30, status | 6D |
| 5 | Engine speed, signal | 6G |
| 6 | Wheel speed, signal | 5G |
| 7 | Ignition coils, actuation | 2G |
| 8 | Fuel injectors, actuation | 3F |
| 9 | Engine load, signal | 3E |
| 9 | Engine load, signal | 4D |
| B11/4 | Coolant temperature sensor | 8G |
| B2/5 | Hot film mass air flow sensor | 1C |
| B28/7 | Pressure sensor downstream of throttle valve | 3C |
| B70 | Crankshaft Hall sensor | 6G |
| CAN B | Interior CAN | 12C |
| CAN C | Drive train CAN | 9E |
| CAN E | Chassis CAN | 7D |
| CAN E | Chassis CAN | 5H |
| Code 233 | DISTRONIC PLUS | 4K |
| G1 | On-board electrical system battery | 7B |
| G1/11 | Rear on-board electrical system battery | 8B |
| M16/6m1 | Actuator motor | 5A |
| M16/6r1 | Actual value potentiometer 1 | 5A |
| M16/6r2 | Actual value potentiometer 2 | 5B |
| N10/1 | Front SAM control unit with fuse and relay module | 10C |
| N10/1 | Front SAM control unit with fuse and relay module | 11G |
| N10/1kN | Engine circuit 87 relay | 7H |
| N22/7 | Automatic air conditioning control and operating unit | 14C |
| N3/10 | ME-SFI [ME] control unit | 5E |
| N30/4 | Electronic Stability Program control unit | 5J |
| N30/6 | Regenerative braking system control unit | 8K |
| N30/7 | Premium Electronic Stability Program control unit | 5K |
| R4 | Spark plugs | 2K |
| T1/1 | Cylinder 1 ignition coil | 2G |
| T1/2 | Cylinder 2 ignition coil | 2G |
| T1/3 | Cylinder 3 ignition coil | 2G |
| T1/4 | Cylinder 4 ignition coil | 2H |
| T1/5 | Cylinder 5 ignition coil | 2H |
| T1/6 | Cylinder 6 ignition coil | 2H |
| U1020 | Valid for gasoline engine with stratified operation | 1B |
| U968 | Valid for mild hybrid drive | 7J |
| U968 | Valid for mild hybrid drive | 8A |
| U968 | Valid for mild hybrid drive | 11E |
| U977 | Not valid for mild hybrid drive | 3J |
| U977 | Not valid for mild hybrid drive | 6A |
| U977 | Not valid for mild hybrid drive | 11E |
| U999 | Not valid with DISTRONIC PLUS | 4J |
| Y3/8n4 | Fully integrated transmission control unit | 12E |
| Y76/1 | Cylinder 1 fuel injector | 2E |
| Y76/2 | Cylinder 2 fuel injector | 2E |
| Y76/3 | Cylinder 3 fuel injector | 2E |
| Y76/4 | Cylinder 4 fuel injector | 2F |
| Y76/5 | Cylinder 5 fuel injector | 2F |
| Y76/6 | Cylinder 6 fuel injector | 2F |
