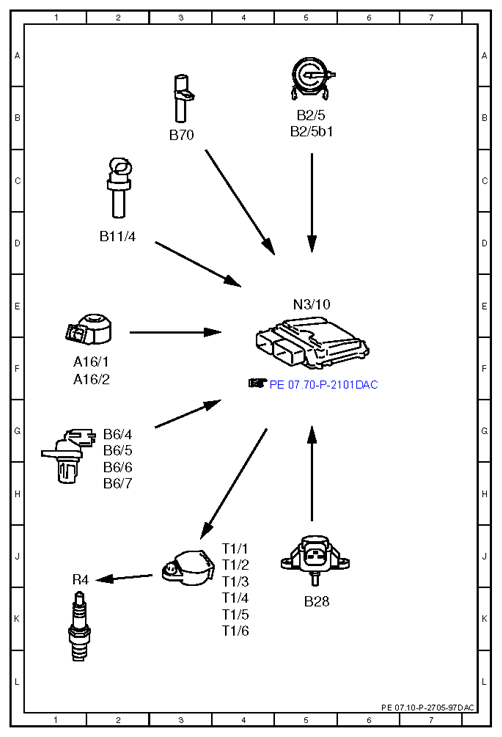

Electrical function schematic for ignition system - PE07.10-P-2705-97DAC
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 272.98 in MODEL 212
| Code: | Designation: | Position: |
|---|---|---|
| A16/1 | Right knock sensor | 1F |
| A16/2 | Left knock sensor | 1F |
| B11/4 | Coolant temperature sensor | 2D |
| B2/5 | Hot film mass air flow sensor | 5B |
| B2/5b1 | Intake air temperature sensor | 5B |
| B28 | Pressure sensor | 5K |
| B6/4 | Left intake camshaft Hall sensor | 2G |
| B6/5 | Right intake camshaft Hall sensor | 2G |
| B6/6 | Left exhaust camshaft Hall sensor | 2H |
| B6/7 | Right exhaust camshaft Hall sensor | 2H |
| B70 | Crankshaft Hall sensor | 3B |
| N3/10 | ME-SFI [ME] control unit | 5E |
| R4 | Spark plugs | 1J |
| T1/1 | Cylinder 1 ignition coil | 4J |
| T1/2 | Cylinder 2 ignition coil | 4J |
| T1/3 | Cylinder 3 ignition coil | 4J |
| T1/4 | Cylinder 4 ignition coil | 4K |
| T1/5 | Cylinder 5 ignition coil | 4K |
| T1/6 | Cylinder 6 ignition coil | 4K |
