Electrical function schematic for fuel supply - PE07.10-P-2703-97DAF

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 642.8 in MODEL 212 up to model year 2014

Code: Designation: Position:
1 Fuel pump, request ON 7D
1 Fuel pump, request ON 6D
10 Quantity control valve, actuation 9H
11 Fuel temperature sensor, signal 6H
12 Rail pressure sensor, signal 5H
13 Accelerator pedal sensor, signal 5G
14 Fuel injectors, actuation 4F
2 Fuel pump, specified pressure request 7D
3 Fuel pump, actuation 5B
4 Fuel pump relay, actuation 2D
5 Fuel pressure, status 7E
6 Condensation sensor for fuel filter with heating element, signal 7H
6 Condensation sensor for fuel filter with heating element, signal 3L
6 Condensation sensor for fuel filter with heating element, signal 5G
7 Fuel preheating system heating element, actuation 5L
7 Fuel preheating system heating element, actuation 8L
8 Instrument cluster, message 13E
9 Pressure regulator valve, actuation 9H
A1 Instrument cluster 13C
A1p13 Multifunction display 13A
B37 Accelerator pedal sensor 1G
B4/6 Rail pressure sensor 4J
B4/7 Fuel pressure sensor 9B
B50 Fuel temperature sensor 5J
B76/1 Condensation sensor for fuel filter with heating element 7K
CAN C Drive train CAN 7D
CAN E Chassis CAN 10F
LIN C1 Drive train LIN 3J
M3 Fuel pump (FP) 4B
N10/1 Front SAM control unit with fuse and relay module 11K
N10/2kD Fuel pump relay 1C
N118 Fuel pump control unit 6B
N14/3 Glow output stage 2J
N3/9 CDI control unit 6E
U1 Valid for USA 6K
U244 Valid for BlueTEC 6K
U42 Valid for countries with poor quality fuel 6K
Y74 Pressure regulator valve 10J
Y76/1 Cylinder 1 fuel injector 3E
Y76/2 Cylinder 2 fuel injector 3E
Y76/3 Cylinder 3 fuel injector 3F
Y76/4 Cylinder 4 fuel injector 3F
Y76/5 Cylinder 5 fuel injector 3F
Y76/6 Cylinder 6 fuel injector 3F
Y94 Quantity control valve 9K

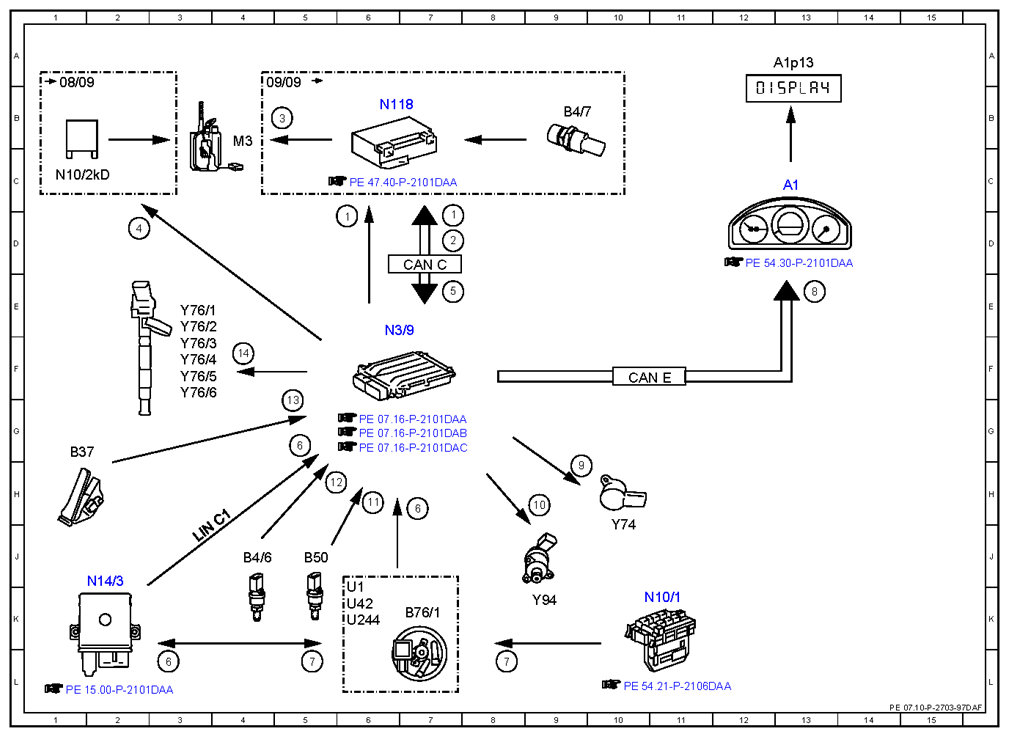

Fig 1: Fuel Supply Electrical Function Diagram
G10054255Courtesy of MERCEDES-BENZ USA
