Wiring diagram for ME-SFI [ME] gasoline injection and ignition system control unit - PE07.61-P-2101-97CAB
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

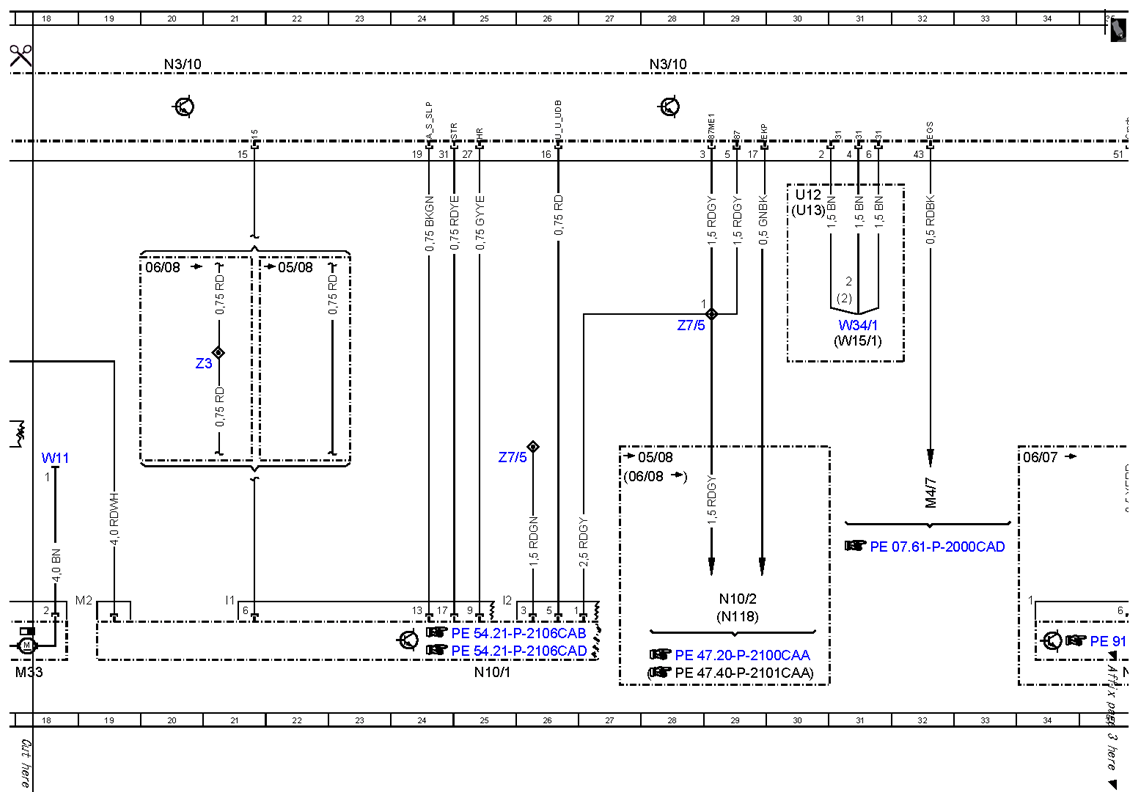

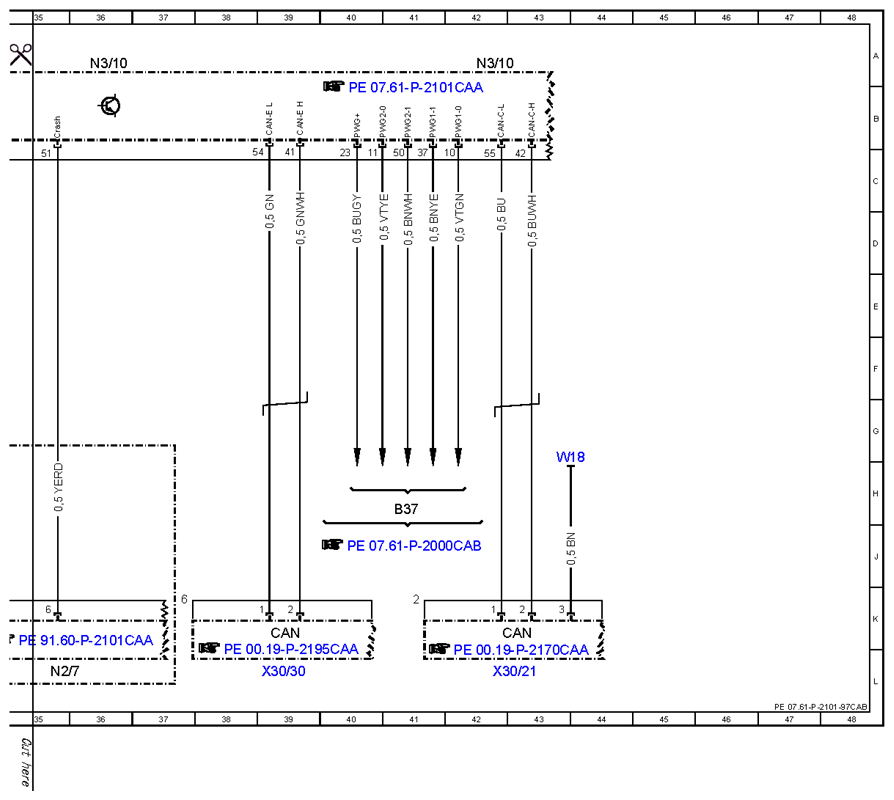

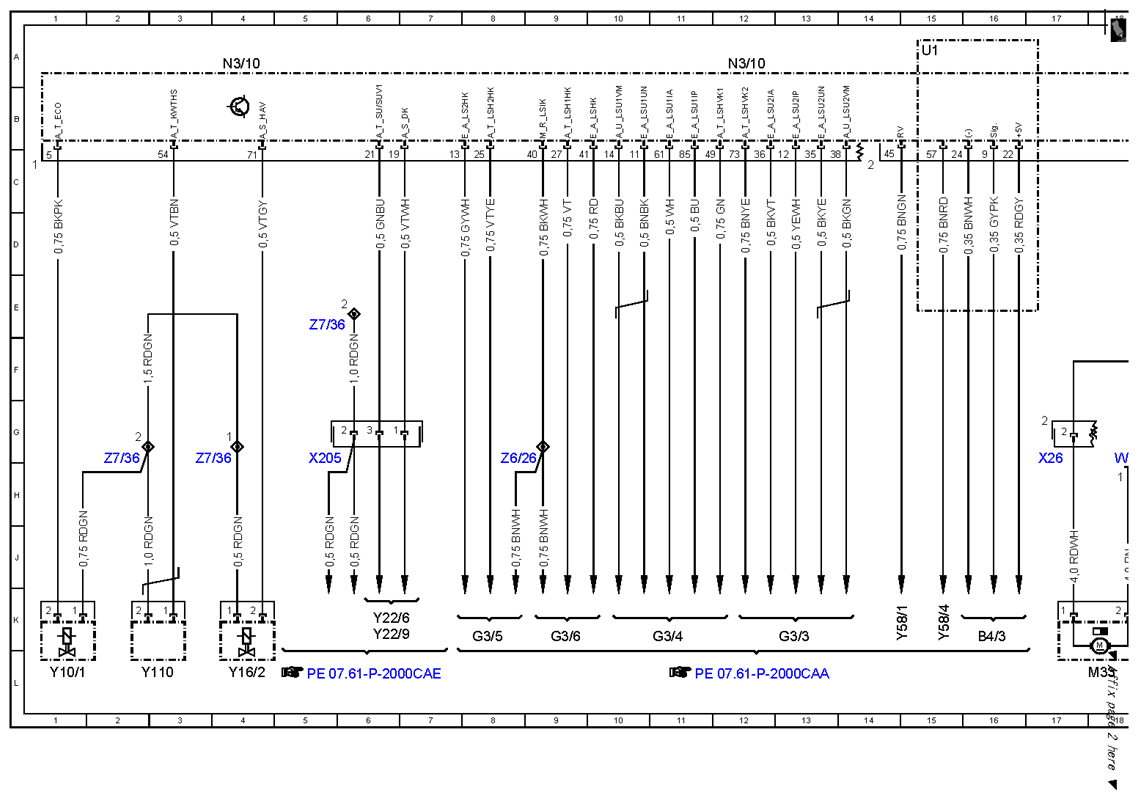

ENGINE 273 in MODEL 216.3 Control unit N3/10, on the vehicle side
| Code: | Designation: | Position: |
|---|---|---|
| B37 | Accelerator pedal sensor | 41H |
| B4/3 | Fuel tank pressure sensor | 16K |
| G3/3 | Left O2 sensor upstream of TWC [KAT] | 13K |
| G3/4 | Right O2 sensor upstream of TWC [KAT] | 11K |
| G3/5 | Left O2 sensor downstream of TWC [KAT] | 8K |
| G3/6 | Right O2 sensor downstream of TWC [KAT] | 9K |
| M33 | Electric air pump | 18L |
| M4/7 | Engine and AC electric suction fan with integrated control | 32H |
| N10/1 | Front SAM control unit with fuse and relay module | 25L |
| N10/2 | Rear SAM control unit with fuse and relay module | 29K |
| N118 | Fuel pump control unit | 29K |
| N2/7 | Restraint systems control unit | 35L |
| N3/10 | ME-SFI [ME] control unit | 42A |
| N3/10 | ME-SFI [ME] control unit | 36A |
| N3/10 | ME-SFI [ME] control unit | 12A |
| N3/10 | ME-SFI [ME] control unit | 4A |
| N3/10 | ME-SFI [ME] control unit | 20A |
| N3/10 | ME-SFI [ME] control unit | 28A |
| U1 | Valid for USA | 15A |
| U12 | Valid for left-hand drive vehicles | 30C |
| U13 | Valid for right-hand drive vehicles | 30D |
| W11 | Ground (engine - electrical line connected) | 18H |
| W15/1 | Ground (right footwell) | 31F |
| W18 | Ground (left front seat crossmember) | 44G |
| W34/1 | Ground (electronics - left footwell) | 31E |
| X205 | Tumble flap/variable intake manifold switchover valves connector | 5G |
| X26 | Interior and engine wiring harness connector | 17G |
| X30/21 | Drive train CAN voltage distributor connector | 43L |
| X30/30 | Chassis CAN/FFS [RBA] voltage distributor connector | 39L |
| Y10/1 | Power steering pump pressure regulator valve | 1L |
| Y110 | Three-disk thermostat valve | 3L |
| Y16/2 | Heating system shutoff valve | 4L |
| Y22/6 | Variable intake manifold switchover valve | 6K |
| Y22/9 | Intake manifold tumble flap switchover valve | 6K |
| Y58/1 | Purge control valve | 15K |
| Y58/4 | Activated charcoal filter shutoff valve | 15K |
| Z3 | Tml. 15 connector sleeve | 20F |
| Z6/26 | Sensor supply connector sleeve | 8G |
| Z7/36 | Circuit 87 M2e connector sleeve | 4G |
| Z7/36 | Circuit 87 M2e connector sleeve | 2G |
| Z7/36 | Circuit 87 M2e connector sleeve | 6E |
| Z7/5 | Circuit 87 connector sleeve | 26G |
| Z7/5 | Circuit 87 connector sleeve | 29E |
