Replace valve stem seals - AR05.30-P-3500-02MM

ENGINE 133, 270, 274

ENGINE 152, 157, 276, 278

Fig 1: Identifying Drift (604 589 00 43 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Pliers (606 589 00 37 00)

Courtesy of MERCEDES-BENZ USA

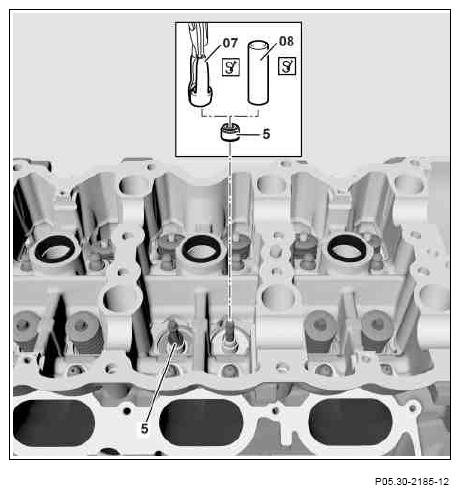

1. Use pliers (07) to pull off valve stem seals (5).
2. Check valve stems for formation of burrs and pitting.

   For ridging on the valve stems

   ↓

   Deburr valve stems.

   ↓

   Replace valves.

   For pittings on valve stems

3. Fit protective sleeve onto the valve stem.
   Fig 3: Protective Sleeve And Valve Stem

   Courtesy of MERCEDES-BENZ USA
4. Coat valve stem seals (5) with engine oil.

   Engine 133, 270, 274

   During assembly ensure that the valve stem seals (5) are installed with the brown sealing on the exhaust side and with the green sealing on the inlet side.

   Engine 152

   Engine 276.9## ## up to 868961

   except code 929 (Ethanol fuelled engine)

   Engine 276.9## ## up to 869781

   with code 929 (Ethanol fuelled engine)

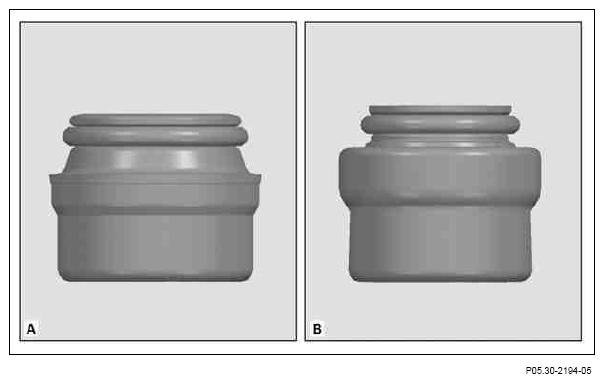

   Fig 4: Valve Stem Seals

   Courtesy of MERCEDES-BENZ USA

   The valve stem seals (5) on the inlet and exhaust side are identical.

   Engine 157, 276.8, 278

   Engine 276.9## ## as of 868962

   except code 929 (Ethanol fuelled engine)

   Engine 276.9## ## as of 869782

   with code 929 (Ethanol fuelled engine)

   During assembly ensure that the valve stem seals (5) are installed without a double lip (Fig 4) on the inlet side and the valve stem seals (5) are installed with a double lip (Fig 4) on the exhaust side. The valve stem seals (5) are identical in color so must not be swapped around.

5. Press valve stem seals (5) with drift (08) up to the end stop.
6. Remove protective sleeve from the valve stem.
