Remove/install solenoid camshaft - AR05.20-P-7295EWR
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 272, 273 in MODEL 212
Right cylinder head
| Remove/install | |||
| 1 | Remove right engine intake air duct and front engine cover | See Remove air filter housing. | AR09.10-P-1150EWS |
| Removal Right intake camshaft solenoid (Y49/5) | |||

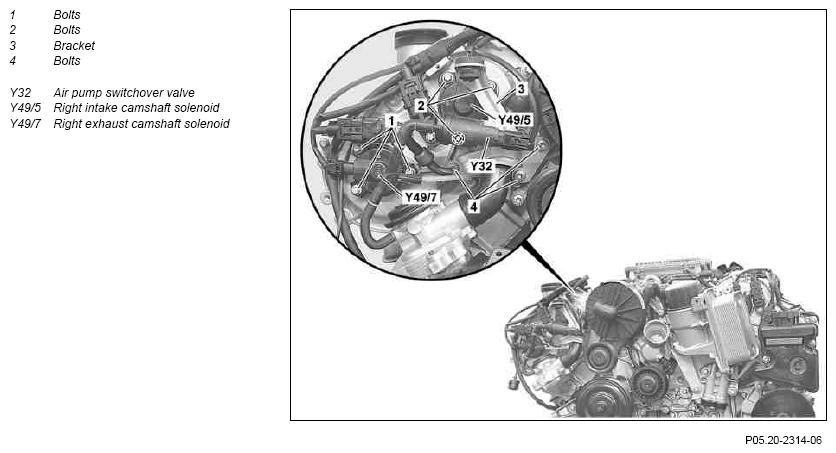

| 2 | Remove bolts (4), detach bracket (3) with switchover valve (Y32) and lay with attached lines to one side | *BA01.30-P-1009-01O | |
| 3 | Release and disconnect electrical connector on solenoid (Y49/5) | ||
| 4 | Remove bolts (2) and solenoid (Y49/5) from the front cover | ||
| *BA15.10-P-1003-03E | |||
| Removal of left intake camshaft solenoid (Y49/7) | |||
| 5 | Release and disconnect electrical connector on solenoid (Y49/7) | ||
| 6 | Remove bolts (1) and solenoid (Y49/7) from the front cover | ||
| *BA15.10-P-1003-03E | |||
| 7 | Install in the reverse order | ||
| Checking | |||
| Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns during starting procedure or when working near the engine as it is running | Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. |
AS00.00-Z-0005-01A | |
| 8 | Conduct engine test run and check engine for leaks |
CYLINDER HEAD
| Number | Designation | Engine 272 | Engine 273 | ||
|---|---|---|---|---|---|
| BA01.30-P-1009-01O | Bolt, switchover valve bracket to cylinder head | M6 | Nm | 9 | 9 |
POSITION SENSOR
| Number | Designation | Engine 272 | Engine 273 | |
|---|---|---|---|---|
| BA15.10-P-1003-03E | Bolt, camshaft solenoid to front cover to cylinder head | Nm | 8 | 8 |
