Remove/install solenoid camshaft - AR05.20-P-7295EWL
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 272, 273 in MODEL 212

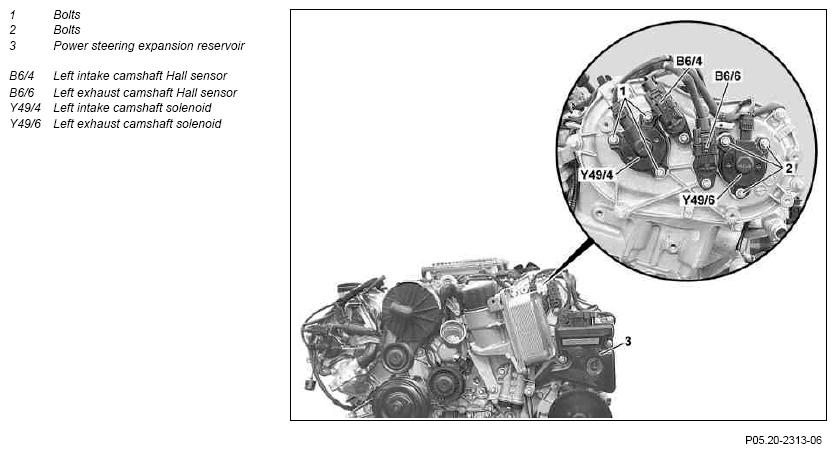

Left cylinder head
| Remove/install | |||
| 1 | Remove left engine intake air duct and front engine cover | See "Remove air filter housing". | AR09.10-P-1150EWS |
| Removal Intake camshaft solenoid (Y49/4) | |||
| 2 | Remove intake camshaft Hall sensor (B6/4) | *BA15.10-P-1002-03E | |
| 3 | Release and disconnect electrical connector on solenoid (Y49/4) | ||
| 4 | Remove bolts (1) and solenoid (Y49/4) from front cover | ||
| *BA15.10-P-1003-03E | |||
| Removal of exhaust camshaft solenoid (Y49/6) | |||
| 5 | Remove intake camshaft Hall sensor (B6/4) and exhaust camshaft (B6/6) | *BA15.10-P-1002-03E | |
| 6 | Release and disconnect electrical connector on solenoid (Y49/6) | ||
| 7 | Remove bolts (2) and solenoid (Y49/6) from front cover | ||
| *BA15.10-P-1003-03E | |||
| 8 | Install in the reverse order | ||
| Checking | |||
| Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns during starting procedure or when working near the engine as it is running | Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. |
AS00.00-Z-0005-01A | |
| 9 | Conduct engine test run and check engine for leaks |
POSITION SENSOR
| Number | Designation | Engine 272 | Engine 273 | |
|---|---|---|---|---|
| BA15.10-P-1002-03E | Bolt, camshaft Hall sensor to front cover on cylinder head | Nm | 8 | 8 |
| BA15.10-P-1003-03E | Bolt, camshaft solenoid to front cover to cylinder head | Nm | 8 | 8 |
