Remove camshaft pinion pins - AR05.20-P-7201-07AMG

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 156

CAMSHAFT, CAMSHAFT ADJUSTMENT

Number	Designation			Engine 156
BA05.20-P-1003-02J	Bolt connecting bearing pin of camshaft drive gear to crankcase	M6	Nm	9

Fig 1: Identifying Threaded Stud (156 589 00 34 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Impact Extractor (116 589 20 33 00)

Courtesy of MERCEDES-BENZ USA

Remove locking bolt (17).
Screw threaded stud (03) into camshaft pinion pin (8).
Attach impact extractor (02).
Knock out pinion pin (8).

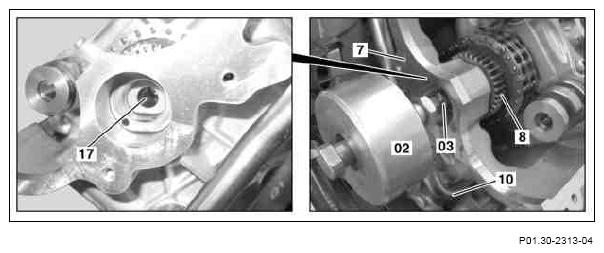

Fig 3: Locking Bolt, Pinion Pin And Impact Extractor
Courtesy of MERCEDES-BENZ USA
