Lock the gear backlash compensation - AR05.20-P-7201-05VA
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 272, 273

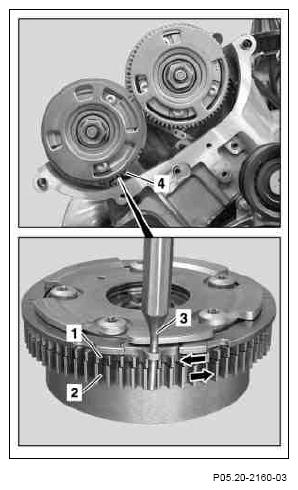

The tooth flanks (1, 2) are held against each other by spring pressure and should not be skewed, otherwise the camshaft adjuster will be irreparably damaged
- Insert the drift (3, diameter 3mm) into the bore (4) of the cover plate and lock the tooth flanks (1, 2) with each other.
Push the drift (3) through to the end of tooth flank (2).
To allow the drift (3) to be inserted more easily, align the tooth flanks with each other (in the direction of the arrows).
Shown on camshaft adjuster, engine 273.965
Shown on camshaft adjuster, engine 272.968
