Lock the gear backlash compensation - AR05.20-P-7201-05AMG

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 156, 159

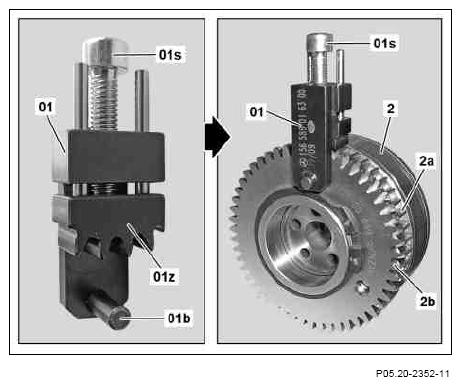

Fig 1: Identifying Compressing Tool (156 589 01 63 00)

Courtesy of MERCEDES-BENZ USA

The tooth flanks (2a, 2b) are pressed against one another under spring tension. Ensure that the tooth backlash compensation is arrested before installing the camshaft adjuster.

Insert retaining bolt (01b) for tensioning tool (01) in to camshaft adjuster (2).
The tensioning tool (01) should make even contact with the camshaft adjuster (2).
Screw in bolt (01s) as far as possible.
This causes the quadrant (01z) to arrest the tooth flanks (2a, 2b) on the camshaft adjuster (2) in relation to one another.

Fig 2: Inserting Retaining Bolt For Tensioning Tool Into Camshaft Adjuster
Courtesy of MERCEDES-BENZ USA
