Remove/install engine from/onto front axle carrier - AR01.10-P-2510CWX
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINES 272, 276, 642 in MODEL 204 with 4MATIC
ENGINES 272, 273 in MODEL 212 with 4MATIC
ENGINES 278 in MODEL 207 With 4MATIC
ENGINES 642 in MODEL 218 With 4MATIC
ENGINES 276 in MODEL 207 With 4MATIC
MODIFICATION NOTES
| 23.11.10 | Value changed: screw/bolt, clamp plate, high-pressure line/return line to rack-and-pinion steering control head | *BA46.20-P-1003-01N |
| Remove/install | |||
| 1 | Attach engine hoist to engine lifting eyes | ||
| 2 | Remove tensioning strap for engine-transmission unit | ||
| 3 | Secure front axle carrier on portable lifting platform with tensioning strap against slipping and falling down | ||
| 4 | Lift engine with a suitable lifting device and engine hoist | ||
| 5 | Detach front axle shafts | Vehicles with 4MATIC | AR33.30-P-0620CWX |
| 6 | Remove screw/bolt, the high-pressure hose bracket from the rack-and-pinion steering housing | *BA46.20-P-1003-01N | |

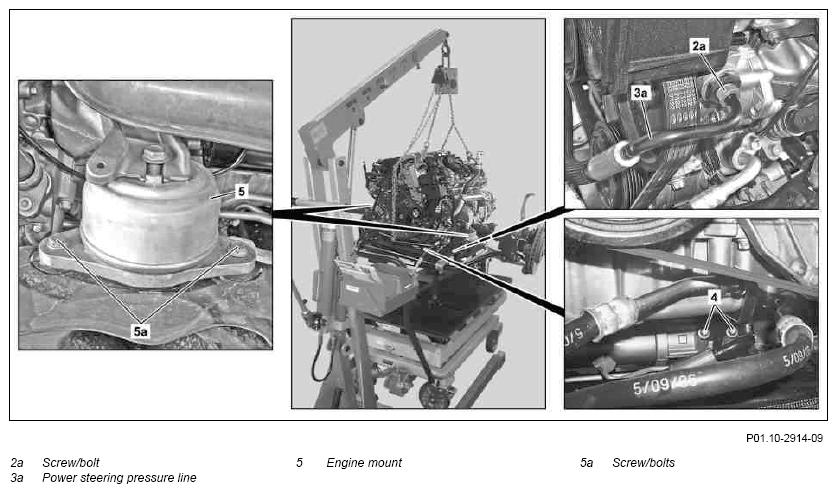

| 7 | Remove bolt (2a) and pull the pressure line (3a) out of the rack-and-pinion steering | *BA46.30-P-1004-01R | |
| *BA46.30-P-1004-01T | |||
| 8 | Remove bolt (5a) from the left and the right engine mount (5) | *BA22.10-P-1001-03E | |
| 9 | Lift off engine/transmission unit from front axle carrier | ||
| 10 | Install in the reverse order |
STEERING GEAR
| Number | Designation | Model 204 with 4MATIC with model 204.9 | Model 207 with 4MATIC | Model 212 with 4MATIC | |
|---|---|---|---|---|---|
| BA46.20-P-1003-01N | Screw/bolt, clamp plate, high-pressure line/return line to rack-and-pinion steering control head | Nm | 21 | 21 | 21 |
POWER STEERING PUMP
| Number | Designation | Model 204 without engine 651 | Model 207 | ||
|---|---|---|---|---|---|
| BA46.30-P-1004-01R | Attachment, high pressure expansion hose of rack-and-pinion steering to power steering pump or tandem pump | Union nut | Nm | 40 | - |
| Banjo bolt | Nm | 45 | - | ||
| Bolt M8 | Nm | 18 | 18 | ||
POWER STEERING PUMP
| Number | Designation | Model 212 | ||
|---|---|---|---|---|
| BA46.30-P-1004-01T | Attachment, high pressure expansion hose to power steering pump | Union nut | Nm | 40 |
| Banjo bolt | Nm | 45 | ||
| Screw/bolt M8 | Nm | 18 | ||
ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)
| Number | Designation | Model 204 except 4MATIC, model 204.9 | Model 204.9 with 4MATIC | |||
|---|---|---|---|---|---|---|
| BA22.10-P-1001-03E | Screw/bolt connecting front engine mount to engine support | M10 | Nm | 50 | 50 | |
| M12 | Stage 1 | Nm | - | - | ||
| Stage 2 | ∠° | - | - | |||
ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)
| Number | Designation | Model 207 4 | Model 212 4 | Model 218 4MATIC | |||
|---|---|---|---|---|---|---|---|
| BA22.10-P-1001-03E | Screw/bolt connecting front engine mount to engine support | M10 | Nm | 50 | 50 | 50 | |
| M12 | Stage 1 | Nm | 85 | 85 | 85 | ||
| Stage 2 | ∠° | 90 | 90 | 90 | |||
