Remove/install wind deflector - AR77.20-P-2500EL
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 166.0 with CODE 414 (Power glass tilting/sliding roof)
MODEL 218 with CODE 414 (Power glass tilting/sliding roof)
MODEL 212 as of model year 2012 with CODE 414 (Electric sunroof, glass version)
Shown on left side of vehicle on model 218
| Remove/install | |||
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| 1 | Open tilting/sliding roof | ||

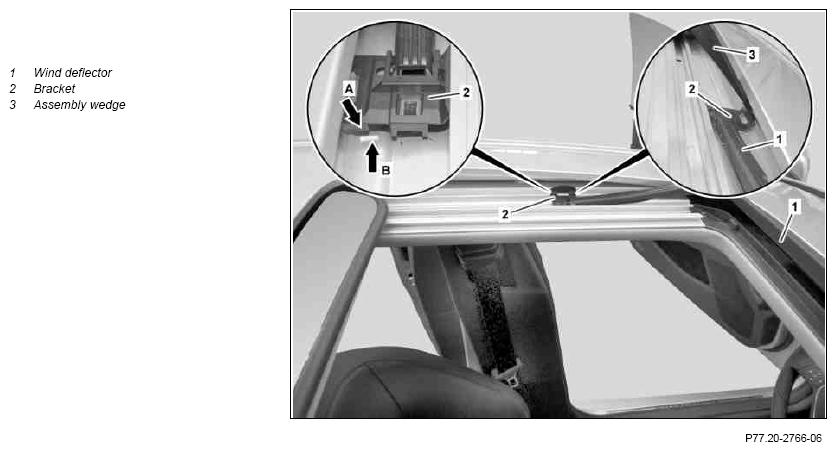

| 2 | Press left holder (2) on outside down with assembly wedge (3), as illustrated, and guide holder (2) out of roof hem | Can break otherwise. |
|
| Figure | |||
| 3 | Press left bracket (2) on outside down with assembly wedge (3), as illustrated, and guide bracket (2) out of roof hem | Can break otherwise. |
|
| Figure | |||
| 4 | Remove wind deflector (2) | ||
| 5 | Install in the reverse order | ||
| 6 | Connect Star Diagnosis, read out fault memory, perform teach-in run for sliding roof anti-pinch protection | ||
| AD00.00-P-2000-04A |
