Remove/install tilting/sliding roof motor - AR77.20-P-3010CW

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 204.0/2, 212, 218 with CODE 414 (Power glass tilting/sliding roof)

Shown on model 204

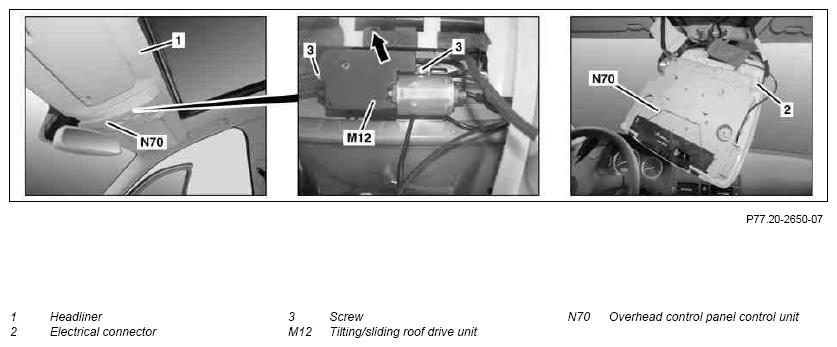

Fig 1: Sliding Roof Motor Remove/Install Components - Shown On Model 204

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Move sliding roof to tilt position "OPEN"	Up to end position.
2	Unclip overhead control panel control unit (N70) from headliner (1) and allow to dangle with electrical lines still attached		AR82.20-P-1000CW
3	Disconnect electrical connector (2) from overhead control panel control unit (N70)
4	Remove bolts (3, arrow) and remove tilting/sliding roof drive unit (M12)
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
		First position all bolts (3, arrow). Then tighten bolts (3) from left to right and then bolt (arrow).
5	Install in the reverse order
6	Normalize sliding roof	Close sliding roof with tilting/sliding roof switch. Continue to hold tilting/sliding roof for min. 1 s in this position. Then move sliding roof to tilt position "OPEN" until end position is reached. Continue to hold tilting/sliding roof for min. 1 s in this position. Then close sliding roof.
7	Connect diagnostic system, read out fault memory, perform teach-in run for sliding roof anti-pinch protection
	Connect STAR DIAGNOSIS and read out fault memory		AD00.00-P-2000-04A
