Prepare rear glass cover for installation - AR77.21-P-7015-03EW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212.1 with CODE (413) Panoramic glass roof with top sliding roof
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1135-02A | Repair kit, installing windshields, 1-component adhesive | A 221 670 81 01 |
Wear cotton gloves. Fingerprints should not be visible on the entire inner side. To prevent adhesion disturbances when installing windows, ensure that the entire inside of the rear glass cover (1) are free of dust, oil, grease, wax, contamination residues and other adhesive substances.
- Check rear glass cover (1) for damage.

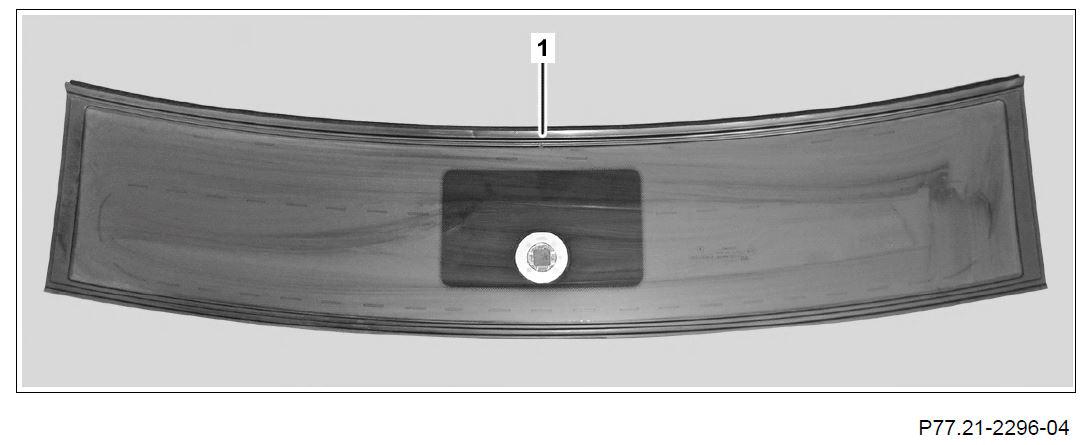

- Install cup suction tool on outer side of rear glass cover (1) and lay rear glass cover (1) down to suitable subsurface (scratch protection) with inside pointing upward. Cup suction tool
- Apply cleaner with part of paper towel to entire inside of rear glass cover (1) and wipe with remaining paper towel.
Allow cleaner to dry completely.
- Apply primer uniformly to entire inside of rear glass cover (1).
Apply primer carefully as this is visible from outside after the rear glass cover (1) has been installed.
