Prepare panoramic roof frame rear glass roof for installation - AR77.21-P-0600-05SX
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 166, 207.3, 212, 221.1 with CODE (413) Panoramic glass roof with top sliding roof
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1089-02A | Repair kit, installing window, 1-component adhesive, replaced by: A 221 670 81 01 | A 221 670 21 01 |

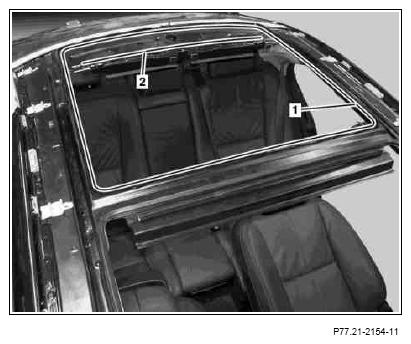

Shown on model 221
Wear cotton gloves. Ensure that no fingerprints are present in the area of the bonding surface. To prevent adhesion problems when installing the window, keep the bonding surface free of dust, oil, grease, wax, dirt residues and other adhesive substances.
- Cut down present glue beads (1, 2) on flange to a height of approx. 1 to 2 mm Wet/dry vacuum cleaner
.
Do not leave more than 2 mm of present adhesive beads (1, 2). Remove glue residues from glue beads (1, 2) not completely cut off.
- Repair paint damage on panoramic roof frame.
- Apply primer in gluing area if glue residues are not present
