Prepare front glass cover for installation - AR77.21-P-7010-03SX
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 166, 207.3, 212, 221.1 with CODE 413 (Automatic panoramic sliding sunroof)
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1135-02A | Repair kit, windshield glazing, 1-component adhesive | A 221 670 81 01 |

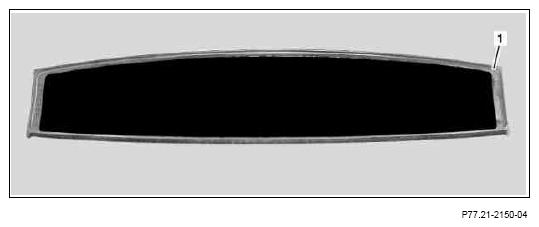

Wear cotton gloves. Fingerprints should not be visible on the entire inner side. To prevent adhesion disturbances when installing windows, ensure that the entire inside of the front glass cover (1) are free of dust, oil, grease, wax, contamination residues and other adhesive substances.
- Check front glass cover (1) for damage.
- Install cup suction tool on outer side of front glass cover (1) and lay front glass cover (1) down to suitable subsurface (scratch protection) with inside pointing upward.
- Apply cleaner with part of paper towel to entire inside of front glass cover (1) and wipe with remaining paper towel.
- Apply primer uniformly to entire inside of front glass cover (1).
Carefully apply primer.
It is visible from outside after installing front glass cover (1).
Observe drying time of at least 10 minutes.

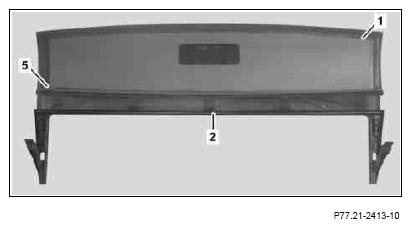

- Model 166 with code 413 (Automatic panoramic sliding sunroof) Guide wind deflector (2) into clamping strip (5) on front glass cover (1).
