Prepare front glass cover body flange for installation - AR77.21-P-7010-02SX
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 207.3, 212, 221.1 with CODE (413) Panoramic glass roof with top sliding roof
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1089-02A | Repair kit, installing window, 1-component adhesive, replaced by: A 221 670 81 01 | A 221 670 21 01 |

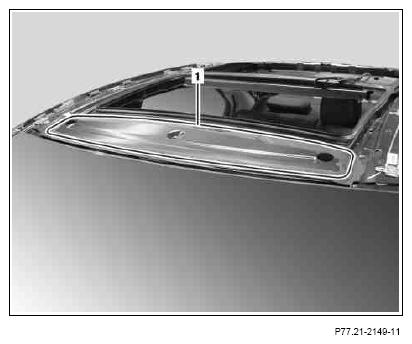

Shown on model 221
Wear cotton gloves. Ensure that no fingerprints are present in the area of the glue bead (1). To prevent adhesion problems when installing the window, keep the bonding surface free of dust, oil, grease, wax, dirt residues and other adhesive substances.
- Cut down existing glue bead (1) on body flange to a height of approx. 1 to 2 mm.
Do not leave more than 2 mm of the existing glue bead (1). Remove glue residues from glue beads (1) not completely cut off. Wet/dry vacuum cleaner
- Repair paint damage on panoramic roof frame.
- Apply primer in gluing area if glue residues are not present
