Install rear panoramic roof cover - AR77.21-P-0751-04EW

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 204.3, 207.3, 212.0 with CODE (413) Panoramic glass roof with top sliding roof

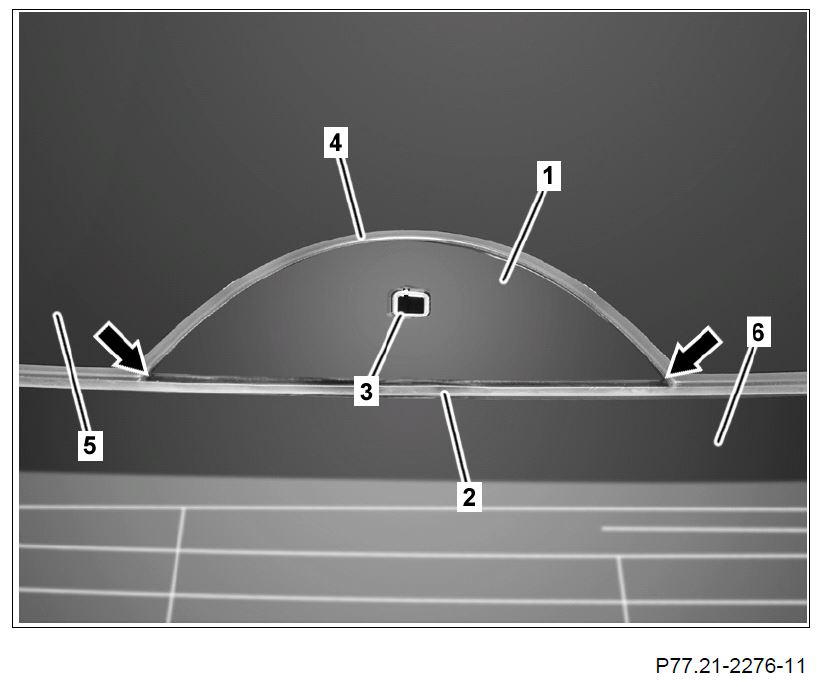

Fig 1: Positioning Panoramic Roof Cover In Rear Area

Courtesy of MERCEDES-BENZ USA

Install panoramic roof cover (1) within 5 min. after applying adhesive to body, otherwise adhesion force of glue will be impaired.

Position panoramic roof cover (1) in rear area (arrows) below folded down seal and lay down on body.
Position panoramic roof cover (1) by carefully pushing and sliding below rubber frame (4) on rear glass roof (5).
Remove cover material from rear window (6) and rear glass roof (5).
Remove adhesive tape from seal (2)
Align panoramic roof cover (1) in relation to rear window (6) and flush to rear glass roof (5).
Install reinforcement (3) on multifunction antenna or multifunction antenna mockup after the adhesive has completely cured.
