Install rear glass cover - AR77.21-P-7015-05EW

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 212.1 with CODE (413) Panoramic glass roof with top sliding roof

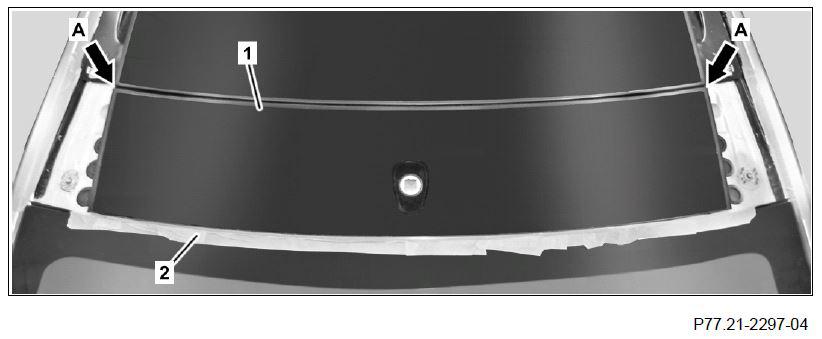

Fig 1: Rear Glass Cover And Adhesive Tape

Courtesy of MERCEDES-BENZ USA

Install rear glass cover (1) within 5 min after applying adhesive to body, otherwise, adhesion force of glue will be impaired.

Position rear glass cover (1) above roof cutout with aid of helper and carefully set down on adhesive bead and press down lightly.
Remove adhesive tape (2) which fastens the lip of the rear window.
Align rear glass cover (1) in relation to roof paneling, rear window and front glass roof in conformance with dimensions noted before removal.
Ensure that rear glass cover (1) is flush with the front glass roof on the side (arrow A).
Align height of rear glass cover (1) in relation to rear window and front glass roof by pressing down, according to dimensions noted.
Immediately remove contamination caused by the adhesive.
Carefully remove cup suction tool. Cup suction tool
