Install panoramic rear glass roof - AR77.21-P-0600-06SX

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 166, 207.3, 212, 221.1 with CODE (413) Panoramic glass roof with top sliding roof

Shown on model 221

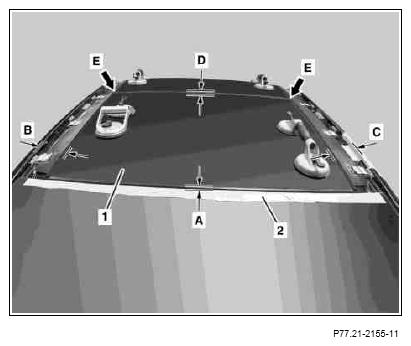

Fig 1: Positioning Rear Glass Roof Above Roof Cutout

Courtesy of MERCEDES-BENZ USA

Install rear glass roof (1) within 5 minutes of applying glue to body before adhesive force of glue starts to decrease

Position rear glass roof (1) above roof cutout with aid of helper, carefully lay onto glue bead and lightly press on. Cup suction tool/shackle (for removing and installing windows).
Remove adhesive tape (2) which fastens the lip of the rear window.
Align rear glass roof (1) in relation to roof paneling, to rear window and to front glass according to dimensions noted (A, B, C, D)
Ensure that the rear glass roof (1) is flush with the front glass roof at side (arrows E).
Align height of rear glass roof (1) in relation to front glass roof and to rear window by pressing on according to dimensions noted.
Immediately remove contamination caused by the adhesive.
Carefully remove cup suction tool. Cup suction tool/shackle (for removing and installing windows).
