Apply adhesive material to front glass cover - AR77.21-P-7010-04SX
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 207.3, 212, 221.1 with CODE (413) Panoramic glass roof with top sliding roof
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1089-02A | Repair kit, installing window, 1-component adhesive, replaced by: A 221 670 81 01 | A 221 670 21 01 |

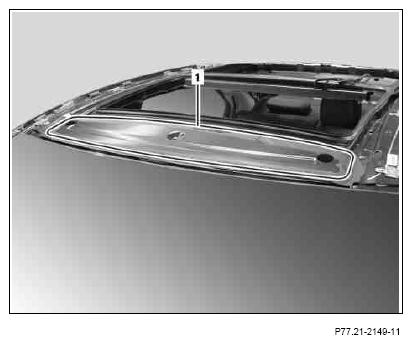

Shown on model 221
Wear cotton gloves. Ensure that no fingerprints are present in the bonding surface (1) area. The bonding surface (1) must be free of dust, oil, grease, wax, contamination residues and other adhesive constituents to prevent adhesion problems when glazing.
- Cutout triangular opening on application nozzle so that adhesive can be applied with a height of approx. 14 mm and a width of approx. 8 mm.
- Guide application nozzle along bonding surface (1) while uniformly pressing out adhesive.
Immediately remove contamination caused by the adhesive. Completely remove excess adhesive from cartridges immediately after applying adhesive and dispose of it as per local regulations.
Pressofix cartridge gun
