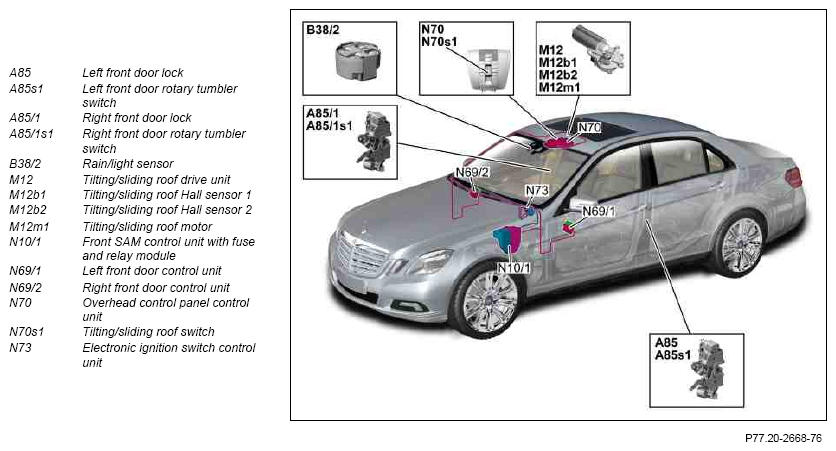

Overview of system components for tilting/sliding roof (SR) - GF77.20-P-9994FL
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212 with CODE 414 (Power glass tilting/sliding roof)
| Component description for front SAM control unit with fuse and relay module | N10/1 | GF54.21-P-6070FL | |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001FL | |
| Component description for right front door control unit | N69/2 | GF72.29-P-6009FL | |
| Component description for overhead control panel control unit | MODEL 212 with CODE 414 (Power glass tilting/sliding roof) N70 |
GF82.20-P-5216FL | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001FL | |
| Table of contents for function description of tilting/sliding roof | GF77.20-P-0999FL |
