Remove/install control unit for TELE-AID emergency call system - AR82.95-P-0005CW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 204.0, 207, 212 with CODE (359) TELE AID emergency call system with CODE (494) USA version
| Remove/install | |||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| 1 | Remove satellite radio control unit | Model 204, 207 |
|
| Model 207.3 | AR82.60-P-7545CWA | ||
| Model 204, 207.4 | AR82.60-P-7545CW | ||

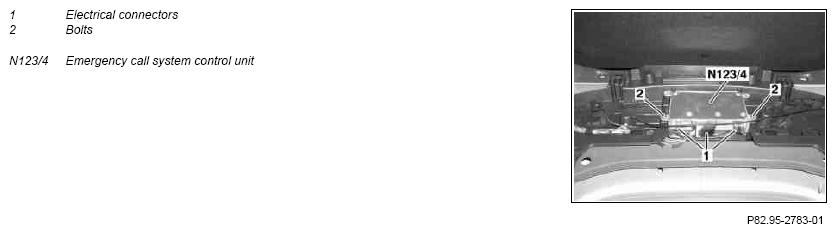

| 2 | Separate electrical connectors (1) | ||
| 3 | Remove bolts (2) from equipment bridge | ||
| 4 | Remove emergency call system control unit (N123/4) | ||
| 5 | Install in the reverse order |
