Retrofit navigation box GPS antenna - AN82.85-P-0020-02EW

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 212.0##/1##/2## 1#

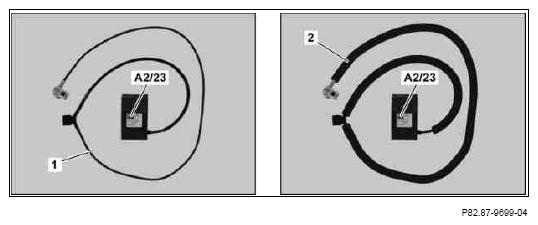

Wrap felt tape (2) around antenna line (1) of GPS antenna (retrofit) (A2/23).
Detach backing film from GPS antenna (retrofit) (A2/23).

Fig 1: Felt Tape And Antenna Line
Courtesy of MERCEDES-BENZ USA
Glue GPS antenna (retrofit) (A2/23) as shown in the slot of the instrument cluster.
The GPS antenna (retrofit) (A2/23) is correctly mounted in the vehicle when the line output at the GPS antenna (retrofit) (A2/23) is on the right side in the direction of travel.
Also use felt tape to fix GPS antenna (retrofit) (A2/23) in place.
Route antenna line (1), as shown, to installation location of glove box.
The GPS antenna (retrofit) (A2/23) is connected to the cradle for navigation module at a later stage.

Fig 2: Route Antenna Line To Installation Location Of Glove Box
Courtesy of MERCEDES-BENZ USA
