Retrofit navigation box - AN82.85-P-0020-01EW

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 212.0##/1##/2## 1#

Break cover (10.1) along perforation out of glove box (10) and remove.

Fig 1: Break Cover And Glove Box
Courtesy of MERCEDES-BENZ USA

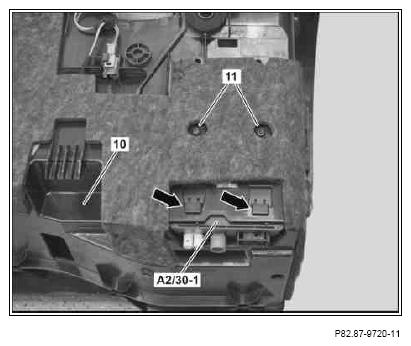

Insert cradle for navigation module (A2/30-1) with brackets (arrows) into glove box (10) and tighten using screws/bolts (11).

Fig 2: Navigation Module, Glove Box & Screws/Bolts
Courtesy of MERCEDES-BENZ USA
