Retrofit illuminated door sill molding wiring harness - AZ82.20-P-0001-04ESA

MODEL 212.0 /2

Connection diagram

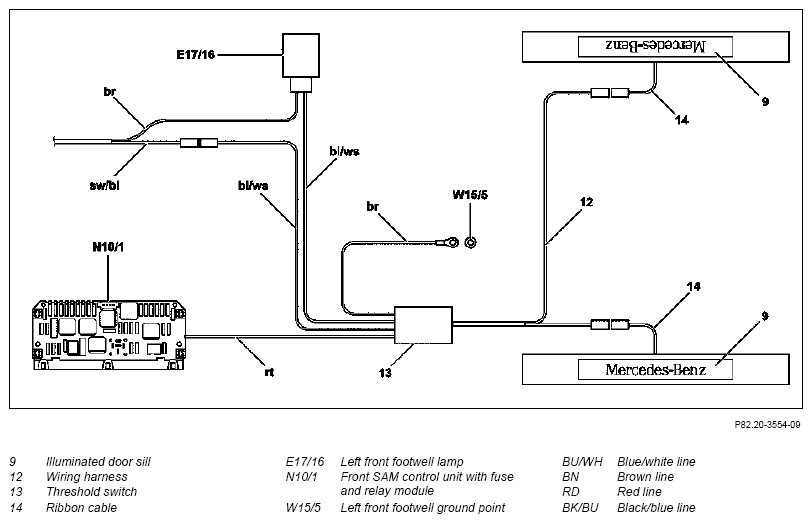

Fig 1: Illuminated Door Sill Molding Wiring Harness Connection Diagram

Courtesy of MERCEDES-BENZ USA

Routing diagram

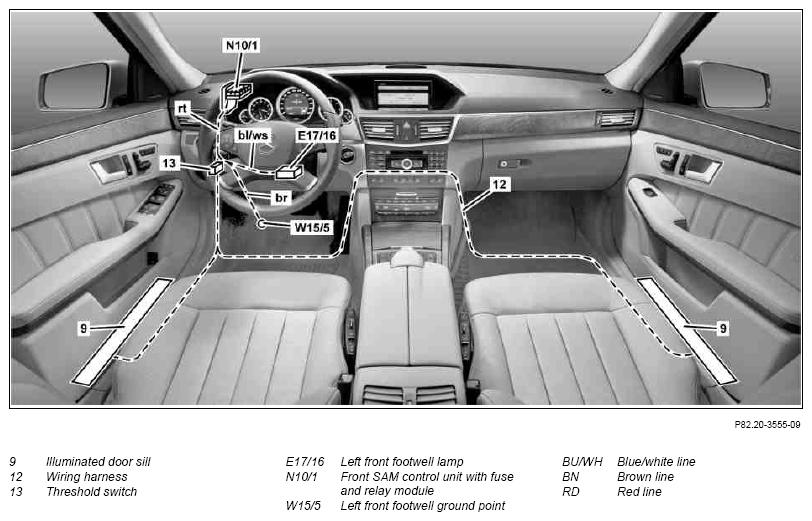

Fig 2: Illuminated Door Sill Molding Routing Diagram

Courtesy of MERCEDES-BENZ USA

Do not damage existing wiring harnesses and new wiring harnesses to be routed by crushing or pinching them during installation and attachment.

1. Fold back floor covering (15) until electrical wiring harness (12) can be routed.
2. Position threshold switch (13), as shown, above parking brake pedal (14) so that threshold switch (13) can be glued onto parking brake cover.
3. Open cable duct along longitudinal member and route electrical wiring harness (12) to connection of left illuminated door sill molding in cable duct.
4. Route electrical wiring harness (12) to connection of right illuminated door sill molding between air conditioner housing and insulation mat via transmission tunnel.

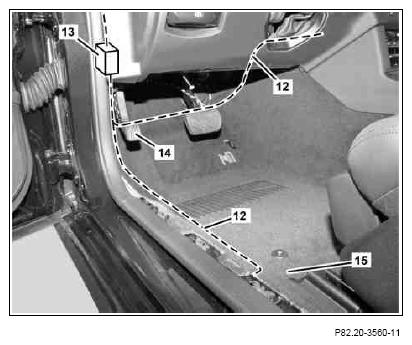

   Fig 3: Electrical Wiring Harness, Floor Covering, Threshold Switch And Parking Brake Pedal

   Courtesy of MERCEDES-BENZ USA

   Shown with floor covering removed.

5. Fasten threshold switch (13), as shown, above parking brake pedal (14) on parking brake cover (16) using velcro strip.
6. Route brown line (BN) at existing wiring harness to left front footwell ground point (W15/5) and connect it.

   A maximum of 5 connectors may be connected to a ground point.

7. Fasten brown line (BN) at existing wiring harness using cable ties.
8. Fasten wiring harness (12) at existing wiring harness and at parking brake Bowden cable (17) using cable ties.
9. Route red line from threshold switch (13) at existing wiring harness through firewall to front SAM control unit with fuse and relay module and fasten with cable ties.

   Blue/white lines are connected to the left front footwell lamp at a later point.

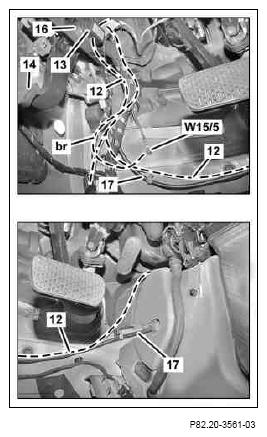

   Fig 4: Routing Red Line From Threshold Switch At Existing Wiring Harness Through Firewall To Front SAM Control Unit

   Courtesy of MERCEDES-BENZ USA
10. Fold back floor covering (18) on passenger side.
11. Detach footrest (19) and place in rear with lines connected.
12. Fold floor covering (20) at transmission tunnel toward rear.
13. Guide electrical wiring harness (12) between air conditioner housing and insulation mat on transmission tunnel and route at existing wiring harness up to right cable duct.
14. Fasten electrical wiring harness (12) at existing wiring harness with cable ties.

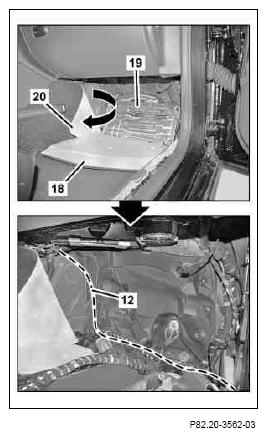

    Fig 5: Folding Back Floor Covering On Passenger Side

    Courtesy of MERCEDES-BENZ USA
15. Lift floor covering (20) until cable duct along longitudinal member is accessible.
16. Open cable duct and route wiring harness (12) to connection of right illuminated door sill molding in cable duct.
17. Install footrest.
18. Lower and position floor covering (20).

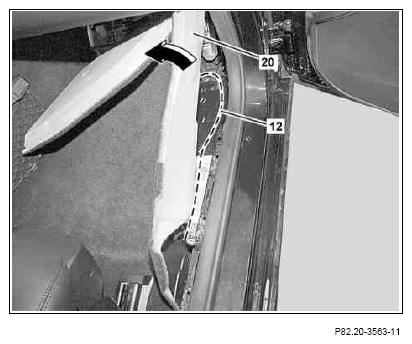

    Fig 6: Lifting Floor Cover

    Courtesy of MERCEDES-BENZ USA
19. Disconnect orange 14-pin connector (arrow A) at bottom of front SAM control unit with fuse and relay module (N10/1).
20. Insert red line (RD) into contact cavity 6

    (arrow B) of orange 14-pin connector (arrow A).

21. Connect orange 14-pin connector (arrow A) to front SAM control unit with fuse and relay module (N10/1).

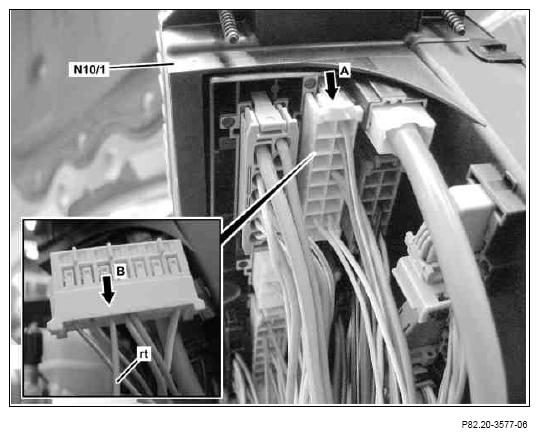

    Fig 7: Connecting Front SAM Control Unit Connector

    Courtesy of MERCEDES-BENZ USA
22. Remove black/blue line (BK/BU) of vehicle wiring harness from coupling housing (25) of left front footwell lamp.
23. Install black/blue line (BK/BU) in coupling housing (26) supplied in contact cavity 1 and connect with plug (27) of blue/white line (BU/WH) of vehicle wiring harness.
24. Install blue/white line (BU/WH) of wiring harness (12) in free slot of coupling housing (25) of left front footwell lamp.

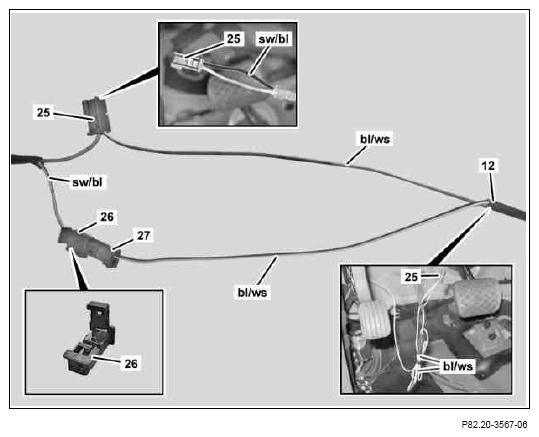

    Fig 8: Front Footwell Lamp Wiring Harness

    Courtesy of MERCEDES-BENZ USA
25. Strap down blue/white lines (BU/WH) in driver footwell with cable tie far enough that coupling housing (25) can still be connected to left front footwell lamp.
